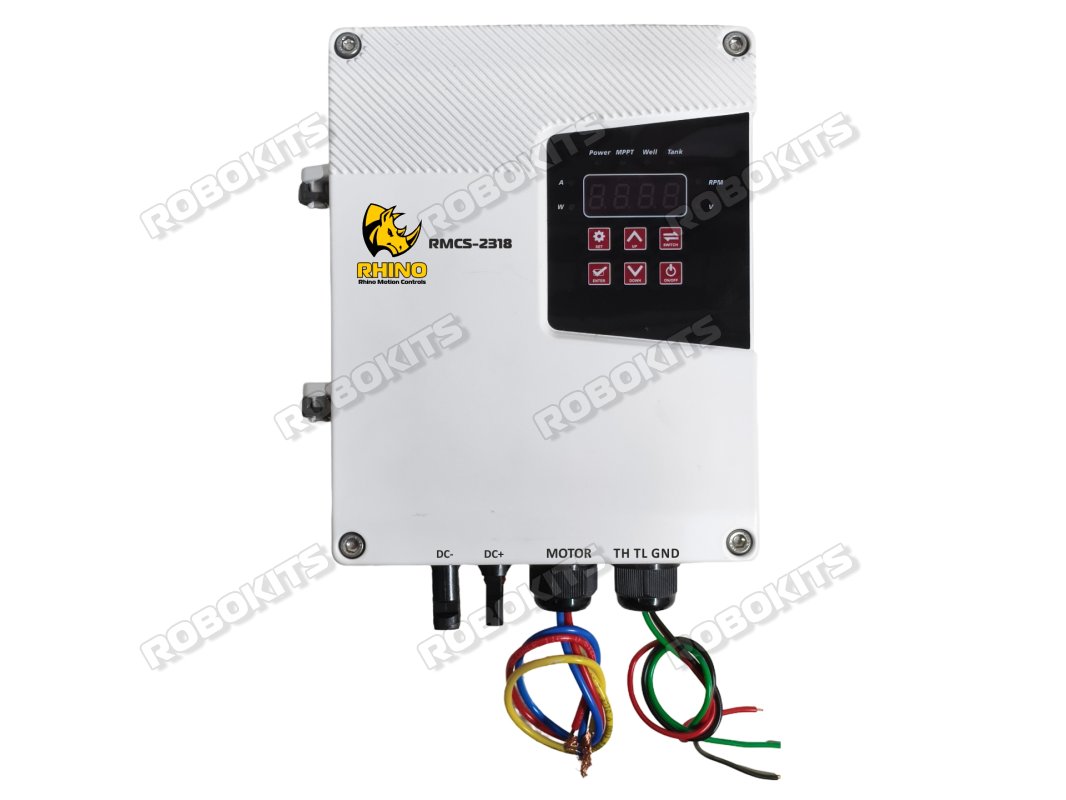

The RHINO VFD is Designed & Manufactured in India. The compact design is ideal for small and medium horsepower applications.
The RHINO VFD is a Variable Speed Motor Drive Designed to Operate Various and AC single phase Pump Sets Specifically Engineered for 2HP Pumps.
Rhino VFD Features:
- Single Phase Motor
- Input Range VDC : 320 to 450 Volts DC
- Power : 2.2 KW
- HP : 1 Hp To 2 Hp
- Amps : 10 Amps
- Operator Controls : Keypad Included
- MPPT Power Tracking : 99%
- Enclosure Rating : IP65
- Net Weight : 1.5 Kg
Power and Motor Terminals:
| Terminal Name |
Description |
| P+ |
Positive DC Input from Panel (MC4 Connector) |
| P- |
Negative DC Input from Panel (MC4 Connector) |
| Motor Wire |
Motor Input Red Wire |
| Motor Wire |
Motor Input Black Wire |
This VFD Operates Single Phase Submersible Motor And If You Have Three Wires Of Motor Then You Can Connect As Per Below Wiring Diagram
Display and Buttons:
| Button Name |
Function |
| Set |
Saves the Parameters to Memory |
| Enter |
Moves to the Next Parameter |
| Up |
Increases the Parameter Value |
| Down |
Decreases the Parameter Value |
| Switch |
Changes the LED Segment Display
Parameters as per the above |
| ON/OFF |
To turn ON or turn Off the inverter |
General Parameters:
| Parameter |
Name |
Description |
Default Value |
| P1 |
MPPT tracking start offset |
MPPT tracking start level |
4 |
| P2 |
No load frequency |
Frequency at no load error |
40 |
| P3 |
Switchover Frequency level |
Frequency at which open loop switched to closed loop |
10 |
| P4 |
Startup torque command |
The torque setting for open-loop star up |
240 |
| P5 |
Motor peak current limit |
sets the peak current the motor coil |
250 |
| P6 |
Motor Type |
Sets the inductance of the motor coil |
1 |
| P7 |
PI loop overall gain |
Peak gain setting for the PI loop |
515 |
| P8 |
Hold time for FOC syncronization |
Sets the hold time during syncing of the motor from open loop to closed loop |
40 |
| P9 |
Torque limit setting |
Maximum torque command given to FOC loop |
480 |
| P10 |
V/F motor rated voltage |
Voltage at the rated frequency |
220 |
| P11 |
V/F motor rated frequency |
The rated frequency of the motor |
50 |
| P12 |
Select closed loop operation type |
FOC-0, V/F-1 |
1 |
ERROR Codes Description:
| ERROR on Display |
NAME |
DESCRIPTION |
 |
ERROR_STATE_NOERROR |
Motor is Off, Not Error |
 |
ERROR_STATE_LOWPWR |
Inverter Auto Shut due to low input power |
 |
ERROR_STATE_LOWVLT |
Inverter Auto Shut due to low input voltage |
 |
ERROR_STATE_CFAULT |
Inverter Circuit Failure due to High Current |
 |
ERROR_STATE_VFAULT |
Inverter Circuit Failure due to High Voltage |
 |
ERROR_STATE_OVHEAT |
Inverter Auto Shut due to Over Temperature |
 |
ERROR_STATE_LOWSTR |
Inverter Auto Shut due to low start-up power |
System Diagnostics:
The solar pump controller continuously monitors system performance and detects a variety of abnormal conditions. In many cases, the controller will compensate as needed to maintain continuous system operation; however, if there is high risk of equipment damage, the controller will protect the system and display the fault condition. If possible, the controller will try to restart itself when the fault condition subsides. See Diagnostics and Troubleshooting section for a list of Fault Codes and corrective actions.
Over Temperature Fold back:
The solar pump controller is designed for full power operation from a solar array in ambient temperatures up to 89°C. In excess of 89°C temperature conditions, the controller will switch off the output.
Level Control Switch:
The solar pump controller can access water level switch detects remotely control the pump or reservoir automatically. Level switch for solar pump controller is optional, not mandatory.
