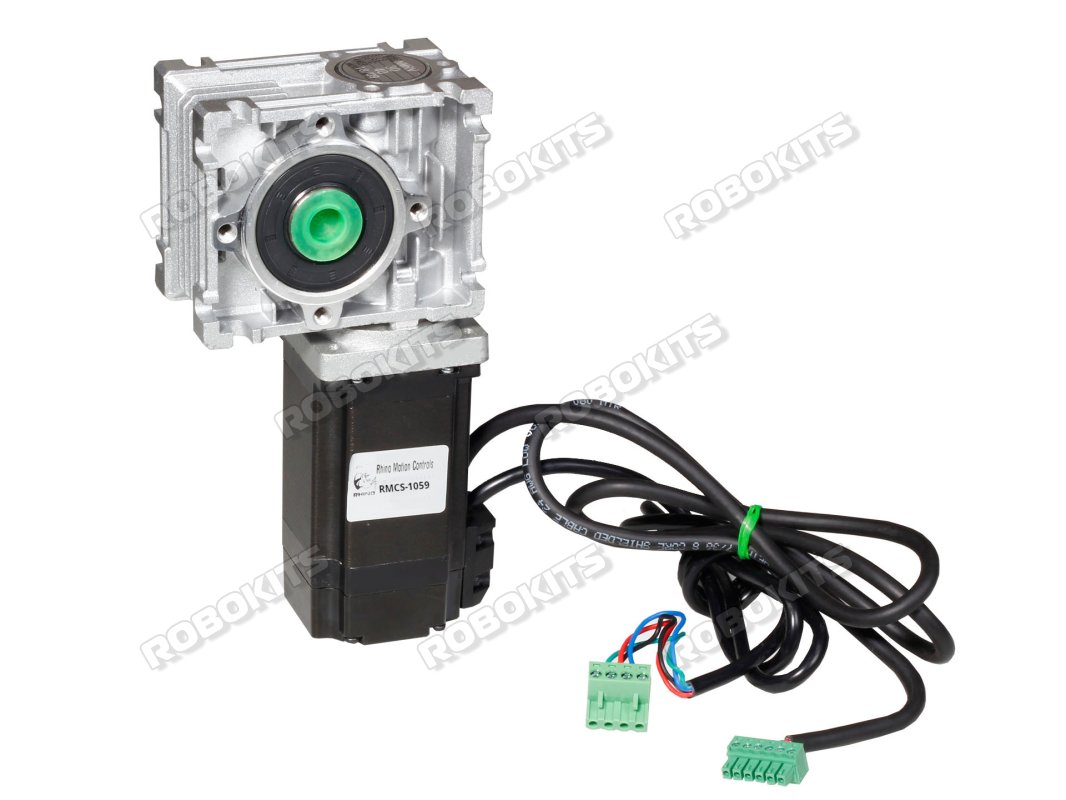

Ideal Servo Motor for CNC machines, diamond machines, laser machines. Standard NEMA23 frame size with 300Kgcm holding torque. Works best with RMCS-1120 a 2-phase Low Voltage AC Servo Drive. Rated for 200W AC servo applications up to 2000RPM.



Worm reducer gearbox with a 1:20 gear ratio at rated torque of 220Kgcm.

Features:

• Holding Torque: 300KG-cm
• 200W AC servo performance with FOC AC drive RMCS-1120



Motor Specifications:

• Step Angle : 1.8 Degree, 50 pole
• Configuration: 4 wire bipolar stepper motor
• Rated Voltage: 3.2V
• Phase current: 4Amp
• Resistance/phase: 0.35ohm
• Inductance/Phase: 1.8mH
• Rotor inertia: 480gcm2
• Insulation Class: Class B
• Length (L): 102mm
• Shaft Dia : 8mm
• Shaft Length : 20mm



Gearbox Specifications:

• Installations for gear : Horizontal
• Category : Worm gear reducer
• Gearbox weight : 1.2kg
• Motor With Gearbox weight : 2.6kg
