Obstacle avoidance radar module is mainly used to measure the relative distance between the drone and the obstacle in all direction of the flight, so as to avoid the obstacle effectively. Obstacle avoidance radar adopts 24GHz radar technology, which can work in all weather under strong light, high temperature, fog, dust, wind and night.
Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable. Electric wires, small trees with a trunk of 10 cm, people with a height of 1.7 m, and telephone poles with a height of 15 cm play an excellent obstacle avoidance function for high-speed drones, which is very suitable for plant protection drones to work in complex outdoor environments.
Please Note: The voltage range is maximum of 5VDC.
Features:
- High sensitivity
- Long detection distance
- Fast signal transmission
- Stable signal transmission
- All-weather work
- Strong environmental adaptability
Specification:
| Mechanical Index |
| Product Size |
66*67.5*16.5mm |
| Positionong Hole Size |
45*66mm |
| Weight |
40g |
| Technical Parameter |
| Modulation Mode |
FMCW |
| Center Frequency |
24.125Ghz |
| Detection Range |
1~150m (adjustable) |
| Detection Sensitivity |
1~140m (High Voltage Power Lines)
1~150m (building) |
| Distance Accuracy |
0.5m |
| Distance Resolution |
0.75m |
| FOV (-3dB) |
Horizontal: 28°
Vertical: 14° |
| Output Frequency |
30Hz |
| Power Consumption |
2.5W @25°C |
| Operating Voltage |
5V |
| Operating Temperature |
-20°C~+85°C |
| Waterproofing Class |
IP67 |
| Interface |
UART |
| Protocol |
Compatible to Pixhawk Ardupilot firmware |
Package Includes:

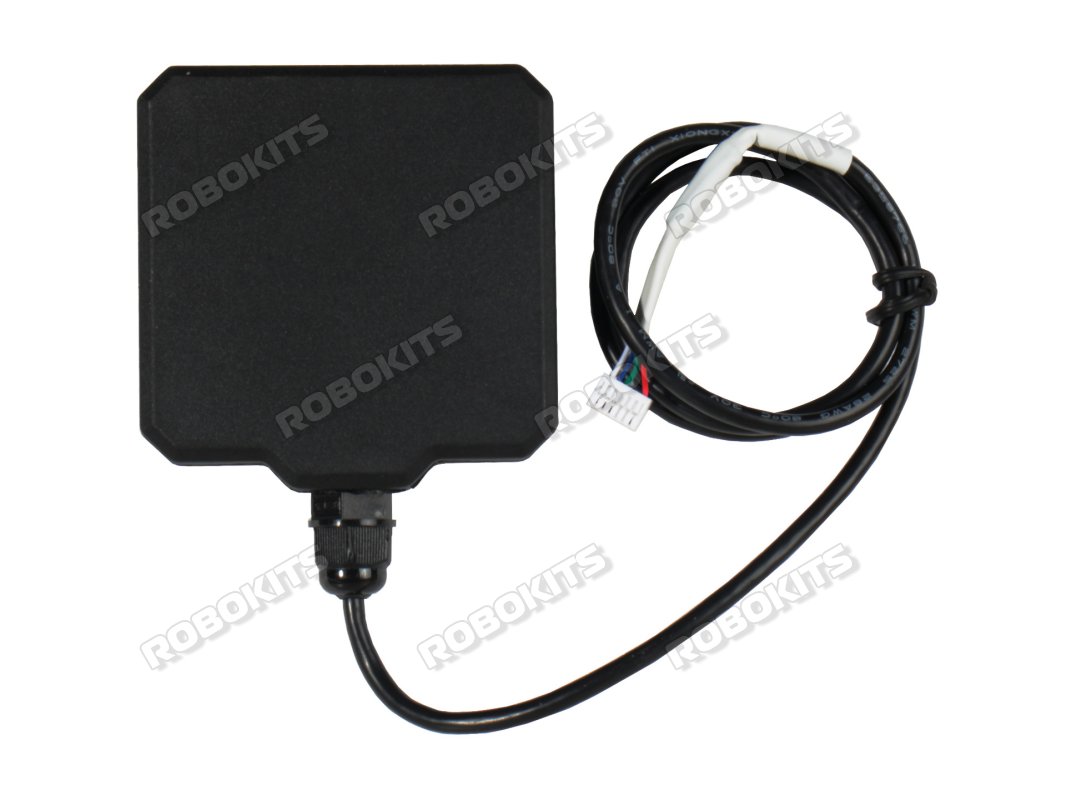

- 1 x Obstacle All Direction FMCW Nano Radar Sensor UART for Pixhawk
