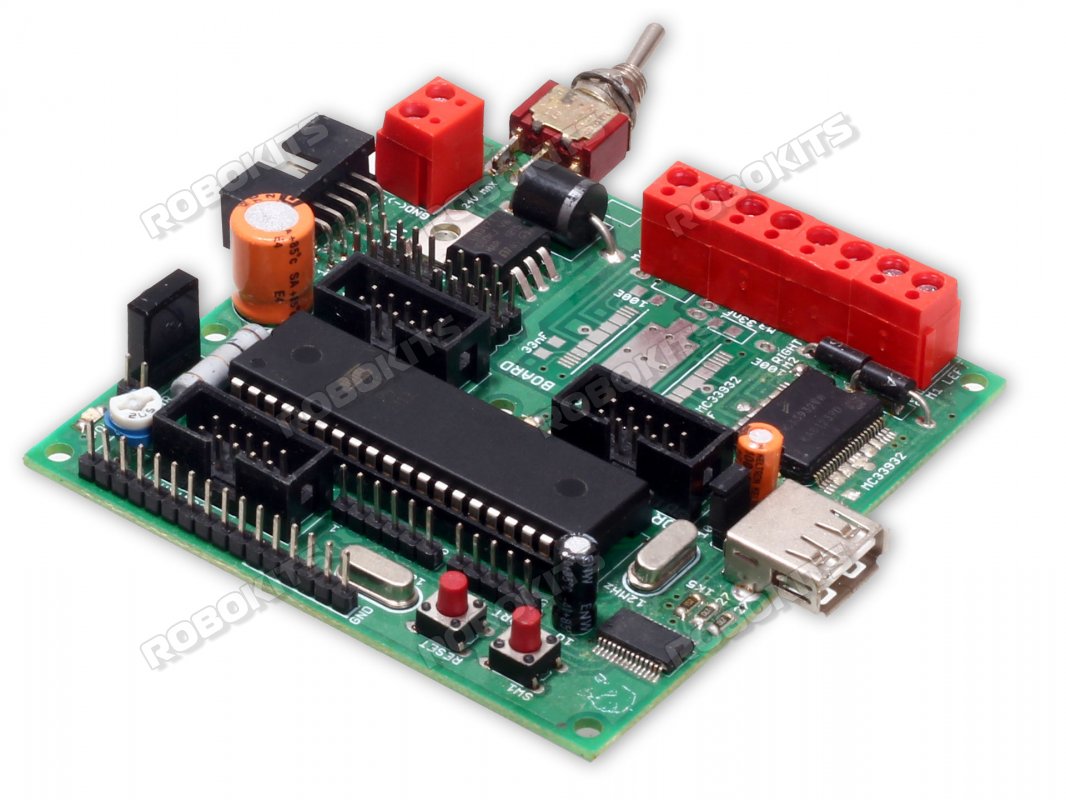

The Rhino Robot control board is versatile and expandable platform for robotics. Due to its expansion capabilities the board can be used to control all robots starting from beginners robot to advanced robots with multiple functionality. The board is compatible to 6-25VDC input compared to all robot control boards available which accepts inputs just up to 12VDC. It has onboard two 5Amp motor drivers MC33932 and expandable to four motor drivers onboard. The motor drivers have inbuilt protection for overheating so you would not see your motor drivers burnt in any case. The high capacity motor drivers give an edge to the development board for driving big robots without any problems.



The board is designed in such a way that Back EMF for big motors do not affect working of microcontroller. Also the motor drivers give very good breaking and linear speeds of motors with input PWM compared to conventional motor drivers. The board comes with a bootloader software pre-programmed in ATMega16 microcontroller and can be easily programmed through USB within few seconds. The Quick-C platform for programming this board with multiple libraries is offered with this board. Please check documentation below in downloads section.
