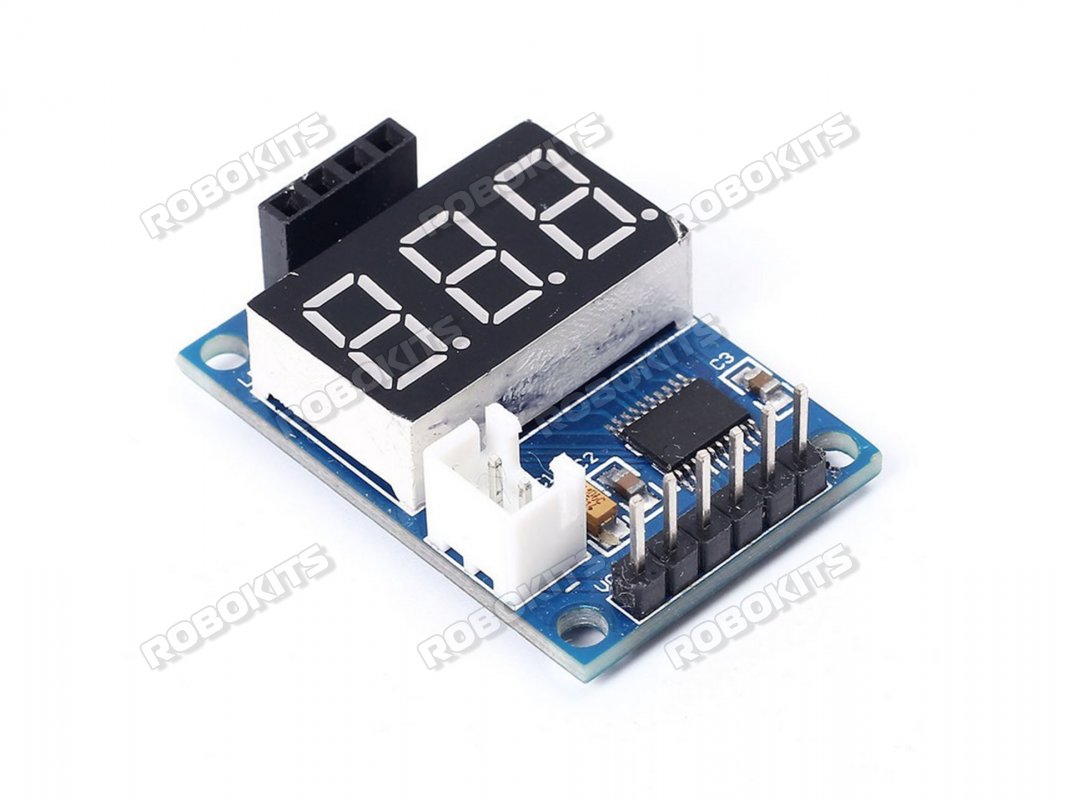

Digital Display for HC-SR04 Ultrasonic Distance Measurement module consists of an 8-bit microcontroller as the main control chip. It can be useful in distance measurement applications using the HC-SR04 ultrasonic module. It is capable of calculating the distance of an object or obstacle away from the sensor and displays it on the mounted 3-digit SSD display. It is also capable of outputting its data via the serial pins on the board.

Specifications:

• Onboard STM8S103 high-performance microprocessor
• Onboard 3 digit SSD display
• Range: 3-400 cm
• Display Unit: cm
• Maximum Input Voltage: 5V DC
• Maximum error: about 1%
• Dimensions: 24 x 35 x 11 mm (L x W x H)

Package Includes:

• 1 x Digital Display for HC-SR04 Ultrasonic Distance Sensor

Note: HC-SR04 sensor is not included in this Package.
