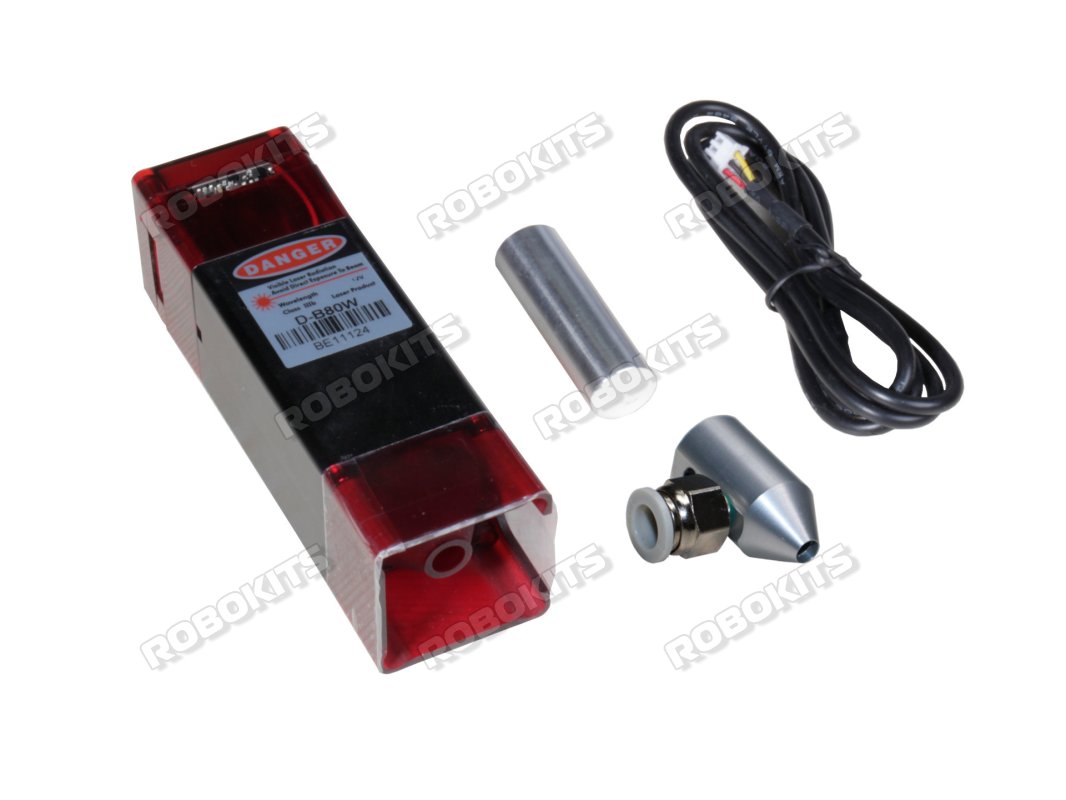

High power laser for Engraving and Cutting comes with LASER Light power of 80 Watts and having the wavelength of 45nm ± 5nm comes with driver. You can engrave wood chips, bamboo chips, plastics, foam, transparent, white depending on the product, but also can cut the above materials. Powerful seconds can cut the tin wire, can also leave traces on the aluminum surface, other Metals cannot be cut and engraved. This products use imported laser diodes as the core components, and the production equipment technology and technology of the latest communication lasers are applied to the production of industrial lasers.

Technical specifications and Features:

• Laser Wavelength: 445nm ± 5nm (Blue).
• Spot Type: Dotted (Adjustable).
• Light Power: 80 watts
• Optical power : 9.5W ~ 11W
• Beam Shape: Dot ( Fixed Focus)
• Focus: 0.08*0.08
• Cooling Method: Forced Air Cooling.
• Input Voltage: 12V DC.
• Current: 3.8A
• PWM/TTL input: 0-5v
• Input interface: xh 2.54-3pin (+,-, PWM/TTL)
• TTL Output Power: > 1k Hz Output Power = Continuous Power X 40%
• Working Frequency: <30khz
• Laser class: class IV
• Safe Temperature Range: 15C~40C
• Lifespan: 15000~20000 hours
• Can engrave : MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum.
• Cuttable materials : Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board
• Unable to engrave: White/transparent material, Aluminum without oxide layer.
• Module Size: 40mm X 40mm X 152mm
• Weight: 650g

Laser Module: 80W

• Plywood 2mm cut : 500 mm/min , S1000 , 1 Pass
• Plywood 3mm cut : 450 mm/min , S1000 , 1 Pass
• Plywood 4mm cut : 400 mm/min , S1000 , 1 Pass
• Plywood 5mm cut : 240 mm/min , S1000 , 1 Pass
• MDF board 3mm cut : 180 mm/min , S1000 , 1 Pass
• MDF board 3mm cut : 120 mm/min , S1000 , 2 Pass
• Black acrylic plate 3mm : 120 mm/min , S1000 , 1Pass
• Black acrylic plate 5mm : 120 mm/min , S1000 , 2Pass
