  5. NEMA23 Planetary Geared 30Kgcm 100W 250RPM BLDC Motor

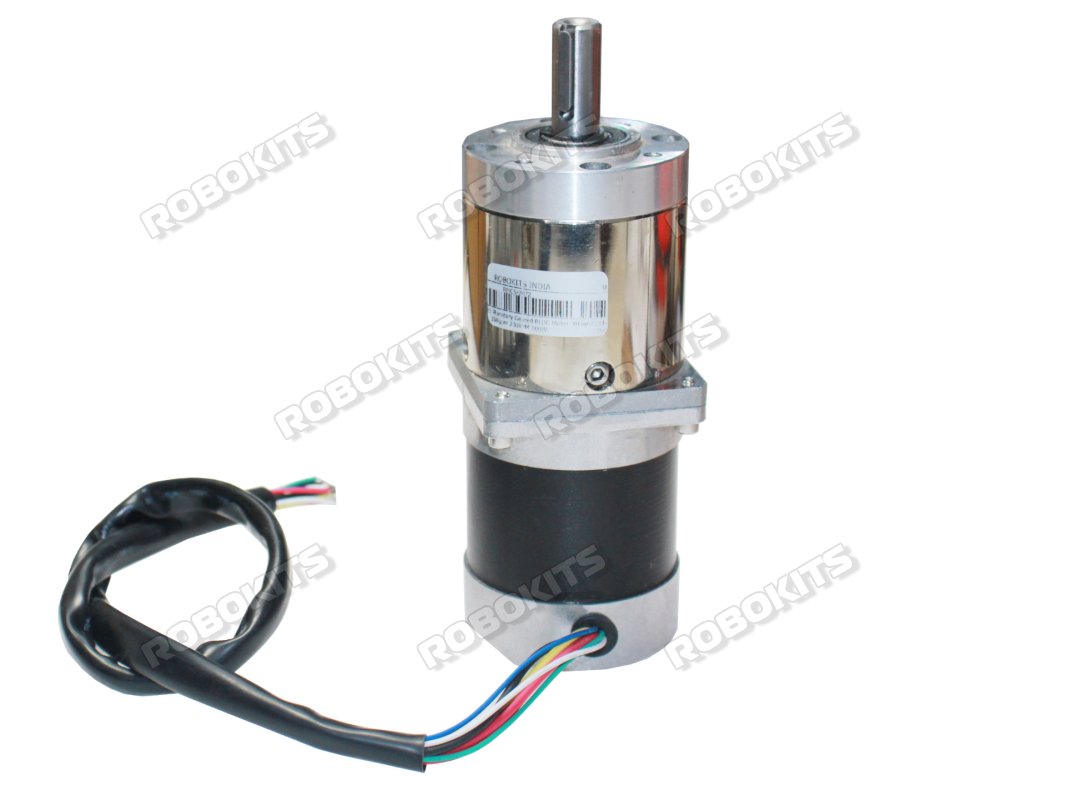

NEMA23 Planetary Geared 30Kgcm 100W 250RPM BLDC Motor

Model: RMCS-2072
Availability : In Stock
₹5,200.00
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹936 available. (Know More)
Warranty : 1 months against manufacturing defect
Free Economy Shipping option available
QTY :

The Rhino Industrial Planetary Geared (IPG) 100W BLDC motor is a compact workhorse for the industrial convener belts, food processing equipment, mobile industrial robots and other continuous use applications in the industry. The Rhino IPG 100W BLDC motor RMCS-2072 is available in the Nema23 frame size along with an all metal integrated planetary gear box with a 1:13 gear ratio. This provides a usable rated torque of 30Kgcm at 250RPM. This torque at 2350RPM in the compact Nema23 frame size is an industry first unique offering from Rhino Motion Controls. This has been made possible because of the High quality motors combined with the High Performance Brushless DC motor driver RMCS - 3001 which offers a high performance closed loop industrial solution for these motors operating at 24V.

The Rhino IPG 100W Brushless DC motor and drive are rated to work at 24 volts which is the rated voltage for many industrial applications. Also the reliability and long term trouble free performance is guaranteed by the high build quality and stringent standards for QC inspection in place at Rhino Motion Controls.

The Rhino IPG 100W brushless DC motors are closed loop motors provided with low noise hall sensor feedback. This sensor feedback enables a precise speed control of the motors along with maintaining the high torque requirements.
Motor Specifications with Planetary Gearbox:
  • Rated Torque : 30 Kgcm
  • Rated speed : 250 Rpm
  • Gear ratio : 1 : 13
  • Motor length without Shaft & gearbox : 87mm
  • Gear box length(L) : 49.5mm
  • Shaft Length: 28mm
  • Shaft Dia: 12mm
  • Efficiency: 0.81%
  • Input Voltage : 24VDC
  • Input Current : up till 10 A(power supply of 240 W, 24V, 10 A  should be used for optimum results)
  • Output Power : 100 W
  • Weight: 2Kg
Base Motor Specifications:
  • Number of poles : 4
  • Phase to Phase resistance : 0.44 ohms
  • No load speed : 3800 Rpm
  • No load current : 1 Amps Max.
  • Rated torque : 0.33 N-m
  • Rated speed : 3000 Rpm
  • Insulation class : B
Motor Wiring Connections:
The motor has 8 wires which need to be connected to the drive as per below :
  • Motor Phase U
  • Motor Phase V
  • Motor Phase W
  • Encoder Phase U
  • Encoder Phase V
  • Encoder Phase W
  • Encoder VCC
  • Encoder Ground
Package Includes:
  • 1 x NEMA23 Planetary Geared 30Kgcm 100W 250RPM BLDC Motor

Further Details for operation of the drive and speed control can be found on the below two links:

BRUSHLESS DC MOTOR DRIVER 50W WITH UART ASCII COMPATIBLE

BRUSHLESS DC MOTOR DRIVER 250W WITH RS485 MODBUS COMPATIBLE
