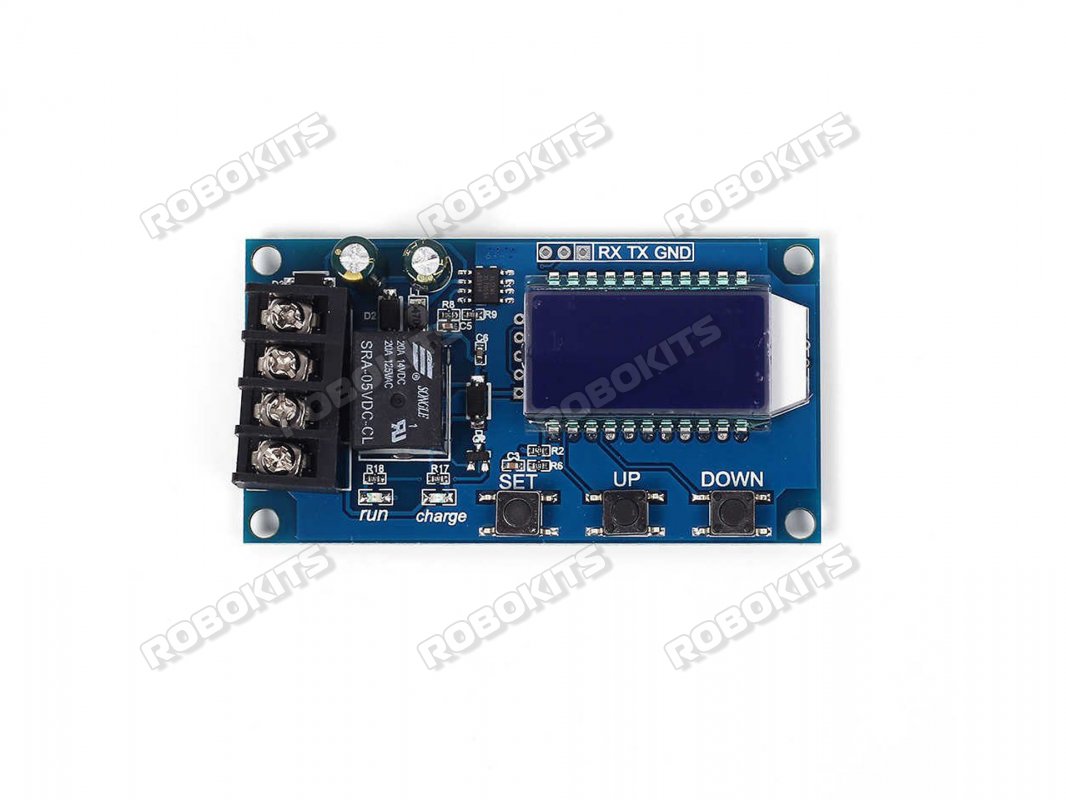

XY-L10A Digital Li-ion Battery 6-60V/10A Charging Control LCD display module Overcharge Protection Switch

Model: RKI-4634
Availability : Out of Stock
₹327.00
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹58.86 available. (Know More)
Warranty : None
Buy 4 or more pieces to get Free Shipping Option
 Sold Out

Battery charging control module automatically controls battery charging and discharging to protect battery.
Features:
  • LCD display
  • Display battery voltage
  • Display Percentage of electricity
  • Adjustable Time
  • Working status indicator
  • Support UART Set
  • Automatic protection battery
Specifications:
  • Digital control charging module
  • Model: XY-L10A
  • Voltage:DC 6V-60V
  • Current:10A(Max)
  • Control Precision:0.1V
  • Output Type:Direct output
  • Voltage Error:0.1V
  • Suitable for battery:Storage Battery,Lithium battery
  • Physical dimension:79 x 42 x 18mm
Function Description:
  • Automatic Charge control function
  • By setting the Upper limit voltage volt-HI:‘UP’; Lower limit voltage volt-LI:‘dn’;
  • The relay turns ON and the charger starts charging for the battery when Current battery voltage is less than Lower limit voltage ‘dn’.
  • The relay turns OFF and complete an automatic charge when Current battery voltage is more than Upper limit voltage ‘UP’.
Charge Time Control Function
  • It will enable time control function by setting parameter ‘OP’ is not ‘0’ after entering the parameter set menu.
  • ‘OP’ default parameter is:’--:--h’, the default does not turn on time control function;
  • After enable Time Control Function(‘OP’ is not equal to ‘0’):
  • Relay will turn ON and the charger starts charging the battery and the system starts timing when Current battery voltage is less than Lower limit voltage ‘dn’.
  • Relay will turn OFF and end charging if Current battery voltage is more than Upper limit voltage ‘UP’ during timing.
  • Relay will turn OFF and end charging if Current battery voltage is less than Upper limit voltage ‘UP’ but the time(‘OP’) has ended.
  • Relay will keep ON and charging if Current battery voltage is less than Lower limit voltage ‘dn’ even though the time(‘OP’) has ended.Module will automatically turn off the charging time control function.And flashing ‘H:ER’ on screen to remind users that time parameter settings are unreasonable.Press any key to stop flashing.
Note : Time format: 00:59 (00 is hours, 59 is minutes) The maximum time is 99:59 which is about 100 hours.

UART communication and parameter settings
The system supports UART data upload and parameter setting functions (TTL level);
UART: 115200, 8, 1

Command Function
ON Enable
OFF Relays Disable
Start Start data upload
Stop Stop data upload
Read Read the parameter setting
dw10.0 Set volt-LI:'dn'
up20.0 Set volt-HI:'UP'
xx:xx Set the charge time 'OP'. 00:00 is used to stop charge time

Data upload message format:
Battery voltage + battery percentage + charging time + charging status
12.0V, 020%, 00:10, OP

Set Parameter:
  • LCD will display 'SET' after enter set parameter menu by long press button 'SET'.
  • Switch the set parameters by short pressing button ‘SET’.
  • Set parameter value by long or short pressing button ‘UP’ and ‘DOWN’.
  • Repeat step 2 and step 3 if need to set other parameters.
  • Automatically save and exit the setup menu by long press button 'SET' after set all parameters.
Button Description:
Long press:keep press button for more than 3second.
In the normal display interface:
  • Display the currently set parameters when short press button ‘SET’;
  • Switch display charging percentage and charging time when short press button ‘UP’;
  • Enable Relay ON or OFF when short press button ‘DOWN’.Relay will OFF and display OFF if disable relay.
  • Set the status of the LCD backlight(L-P) when long press button ‘UP’.
    • OFF:The backlight will keep bright.
    • ON:Backlight will be automatically turned OFF after 5-10second.
  • Long press ‘SET’ button to enter the parameter settings menu.
Calculation Voltage Percentage:
voltage percentage = battery voltage/(volt-HI – volt-LI)

Application:
  • Car
  • Electric car
  • Factory
  • Communications room
  • Radar station
  • Computer room
Additional Features:
  • Charging time recording function:The product will record a full charge time when the charging time control is not turned on.Flashing shows the charging time when entering the time display interface.The data will be emptied when exit the time display interface or the next charge is turned on (the relay is turned on)
  • Automatic parameter detection:The system will flash ‘ERR’ to indicate the reminder when the parameter is set and exiting but Lower limit voltage ‘dn’ more than Upper limit voltage ‘UP’.
  • Battery connection detection: This product is attached to the battery. If the battery is not connected, the system will display ‘nbE’ on the lower line to remind you.
Package Include:
  • 1 x XY-L10A 10A Lithium Battery Charge Controller
