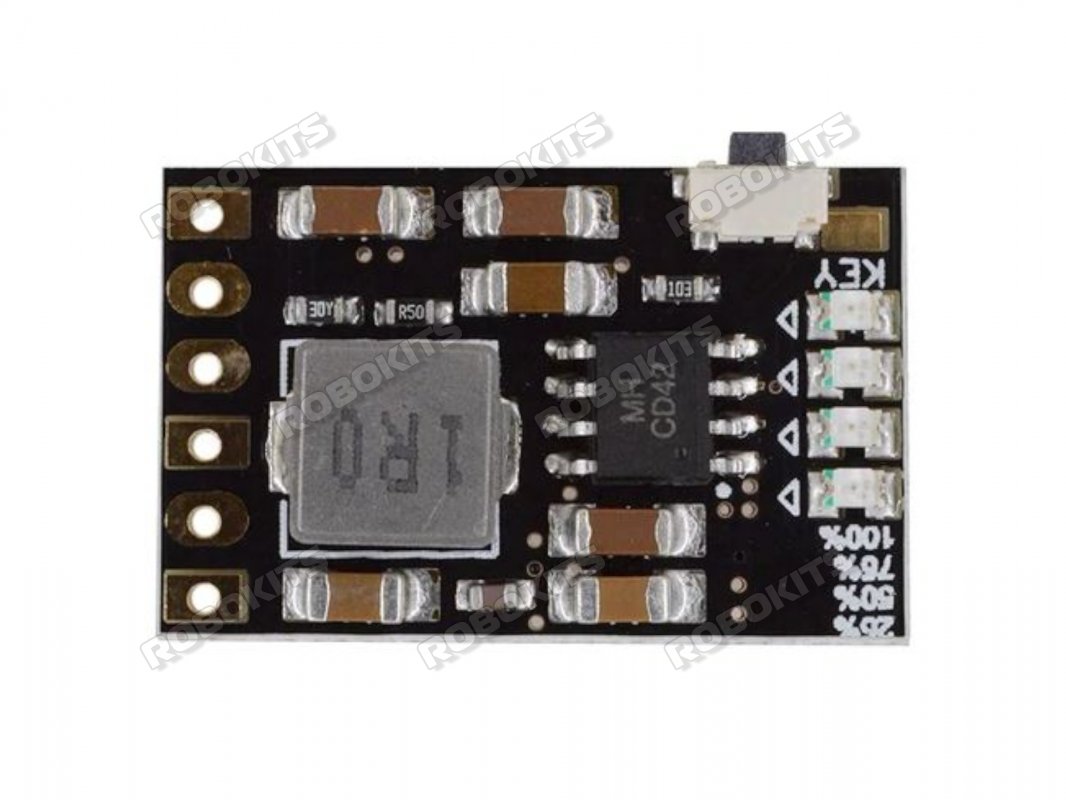

5V 2A Boost Output for Single Lithium Cell 3.7V Voltage Indicator Module

Model: RKI-4614
Availability : In Stock
₹30.00
Current Reviews: 1 Add Your Review
GST Input Tax Credit @ 18 % of ₹5.4 available. (Know More)
Warranty : None
Buy 34 or more pieces to get Free Shipping Option
QTY :

This is a boost circuit to get 5V 2A output from a single Lithium Ion cell ( 3.7V/4.2V).
Overview:
  • Low level trigger
Features:
  • Trigger mode: low level trigger (ground)
  • The module comes with a lithium battery protection function.
Specifications:
  • Dimension: 25 * 16 * 4mm
  • Charging voltage: DC 4.5V-5.5V (DC 5V recommended)
  • Charging current : 0-2.1A
  • Charging quiescent current : 100uA
  • Full voltage: 4.2V+-1%.
  • Discharge current: 0-2.4A;
  • Discharge quiescent current : 50uA
  • Discharge efficiency: up to 96%
  • Output voltage: 5V
  • Ambient temperature: -20 degree to +85 degree
    •
Application:
  • This module protects the Lithium Batteries from over charge / discharge and short circuit.
Pin Description:
  • VIN : Charge port positive input +
  • GND : Charger Negative Input -
  • BAT : Lithium Battery +
  • GND : Lithium Battery -
  • GND : Output negative output -
  • VOUT: Output Positive Output +
  • KEY : Output Enable Trigger Port (Low Pulse Trigger)
Package Includes:
  • 1 x 5V 2A Charging Discharging Protection Integrated Boost Module 3.7V/4.2V Lithium Battery


by hardik patel

Must buy it
