7S 15A 24V BMS Balance Common Port Charge Protection Board 3.7 Li-ion Cell

Model: RKI-2730
Availability : Out of Stock
  • 7S 15A 24V BMS Balance Common Port Charge Protection Board 3.7 Li-ion Cell
₹1,320.00  ₹463.00
Sale
-65%
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹83.34 available. (Know More)
Warranty : None
Buy 3 or more pieces to get Free Shipping Option
 Sold Out

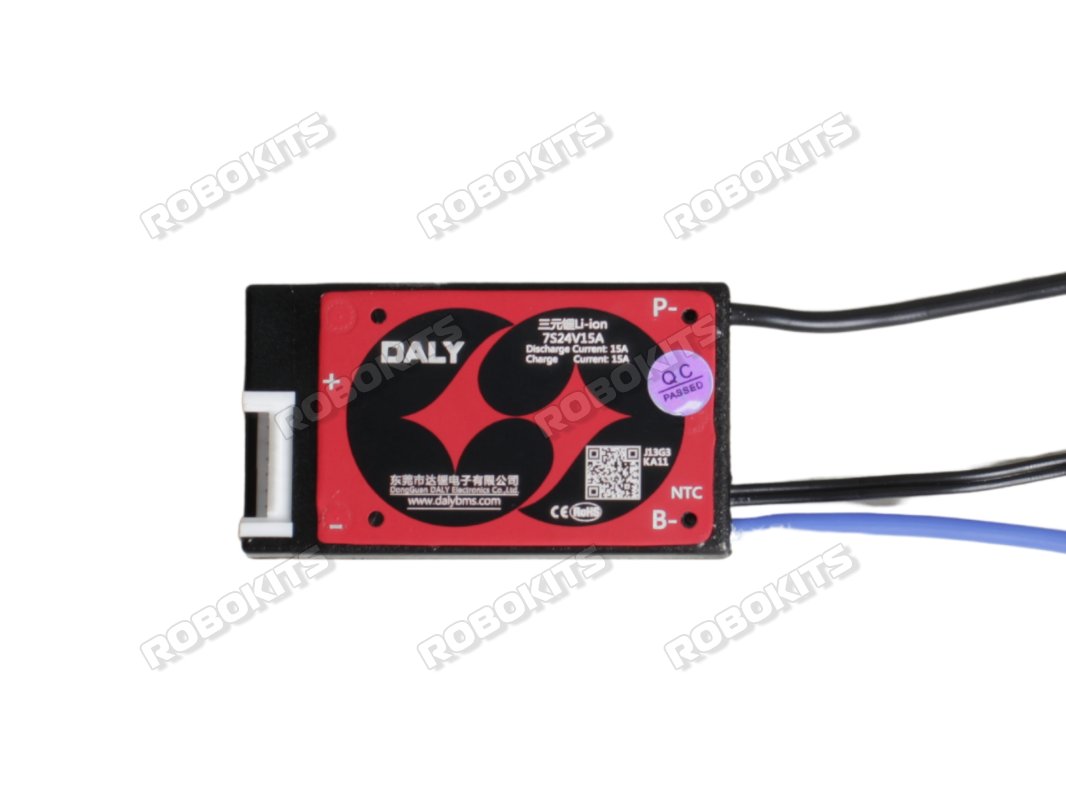

7S 15A PCM/PCB/BMS for 24V Li-ION battery pack for electric bicycle and scooter and tools Battery Accessories. It is a Battery Management System for Li-ION Battery Pack.The main functions of BMS are over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection of Battery pack of 3.7V rated Li-ION Battery.It Uses top quality (A-level) protective integrated circuit IC,Strong load ability,use high voltage resistance,low inner resistance power Mosfet. The heat sink will greatly help cooling. IC itself has power balancing function.
Overview
  • 7S 15A BMS
  • Common Port for charge/discharge
  • Voltage: 24V
  • Charge Current: 10A
  • Discharge Current: 15A
  • 3.7V rated Li-ION Battery not for 3.2V Rated LiFePO4

Features
  • The circuit is simple and reliable.
  • Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection .
  • Long time short circuit of the load won’t affect the PCB and the battery.
  • Temperature protection during charging and discharging.
  • PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

Specifications
  • Model: DL7S (3.7V rated Li-ION Battery not for 3.2V Rated LiFePO4)
  • 7S 24V 15A bms is used for 7 series 24V battery pack
  • Common Version : common port for charge/discharge
  • constant discharge current: 15A
  • Charge Current: 10A
  • Extreme low power consumption. The consumption of the whole device is less than 50uA.​


7S 24V

Details

Specifications

Discharge

      Maximal Continuous Discharging Current

15A





 Peak Discharging Current

60A



    Over Current Protection Current

 60A

Charge

Charging Voltage

30V(24V battery)



Charging Current

10A

      Over charge protection

Over Charge Detection Voltage

4.25 ± 0.05V



Over Charge Detection Delay Time

1S



  Over Charger Release Voltage

4.15 ± 0.05V

Cell balancing

Cell balancing Detection Voltage

   4.18V



   Cell balancing Release Voltage

  4.18V



 Cell balancing Current

30 ± 5mA

Over discharge protection

  Over Discharge Detection Voltage

2.7±0.1V



Over Discharge Detection Delay

Time 1S



Over Discharger Release Voltage

3.0 ± 0.1V

Over current protection

Over Current Detection Voltage

 200mV



Over Current Detection Delay

Off Load



Over Current Protection Condition

Disconnect the load

Short Protection

Detection Condition

      Exterior Short Curcuit



Detection Delay Time

250uS



Release Condition

Disconnect the load

Temperature Protection

Charge <-5deg or >50deg

Discharge>70deg

optional

Internal Resistance

MOSFET

≤20mΩ

Package Includes:
  • 1 x 7S 15A 24V BMS BALANCE COMMON PORT CHARGE PROTECTION BOARD 3.7 LI-ION CELL
