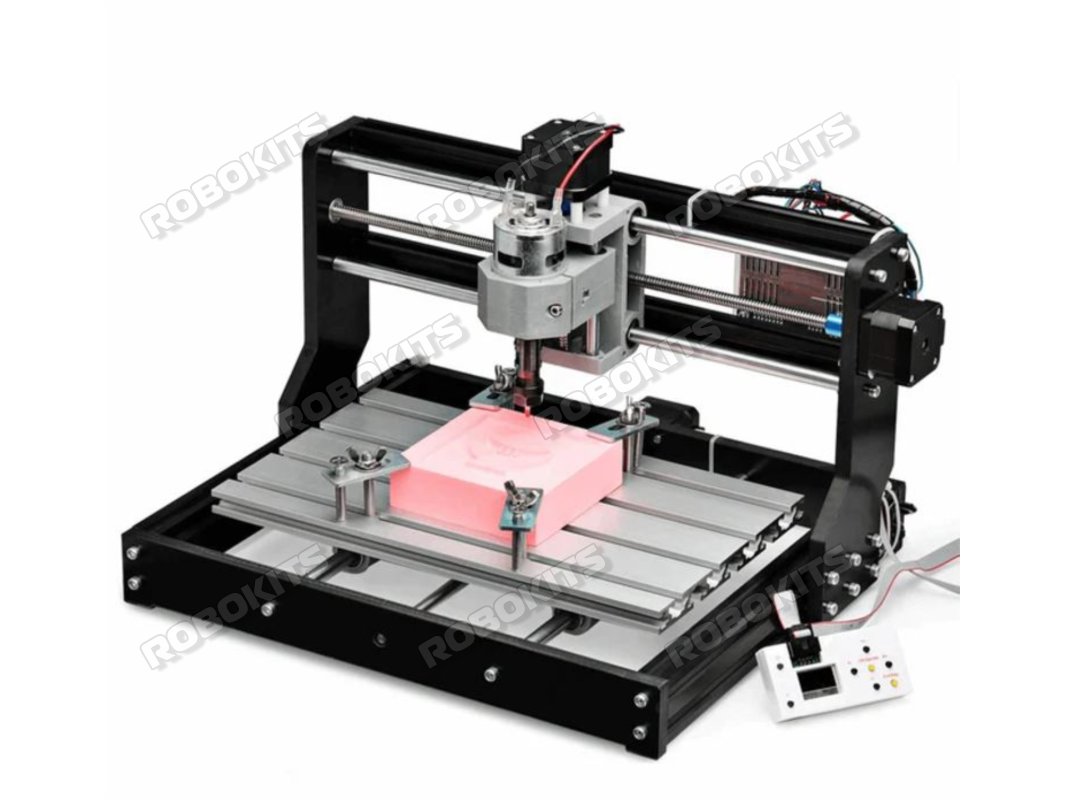

Mini Marking 3018-PRO CNC GRBL Milling & Laser Engraving Machine with wider base (Medium Duty) DIY Kit

This mini CNC engraving machine with laser engraving is suitable for non-metal applications. It can be used for both milling and laser engraving application. Body with aluminum and plastic, small size, light weight, easy to learn. Can use carving knife, but also can use laser engraving. The machine provides USB interface and GRBL Control..

The repeat positioning accuracy is with in 0.1mm under no-load, usually is about 0.05mm. Laser is considered no-load. If used graver, the precision is depending on the hardness of the material. It can be use with CAM Design Software. It supports windows 7/8/10.

Note: Laser head is optional.

Note: Power supply and offline controller are not included.

Tips: Upto 8watt laser can be used with this kit for engraving materials like wood and PVC.

Specifications:

• Profile Dimensions: 400x330x240mm (without motor protruding part)
• Stroke (engraving range): 300x180x45mm
• Assembly Time:1 hours
• Screw: Professional T8 screw, lead 4mm, double copper nuts eliminates the difference
• Step stepping motor: NEMA17 4.2kgcm stepping motor.
• Reliable quality
• Voltage: 24V/5A
• Phase current: 1.3A
• Phase resistance: 2.1 ohms
• Torque: 0.3Nm
• Spindle: 775 Spindle motor (12-36V) 24V: 10000 rpm
• stepper motor driver: A4988
• spindle unit chip: MOSFET
• Frame & Structure: Aluminum & Bakelite
• Black Part Material: Plastic
• Control software: GRBL Control(GRBL 1.1)
• Design software: CAM software
• System requirements: windows XP SP3, win7, win8, win10.
• Interface: USB
• Application: Milling & Laser engraving
• Support G code file : txt, tap, nc, ncc, cnc.
• Unable to engrave: White/transparent material, Aluminum without oxide layer for laser application.
• Weight : 7.34kg
