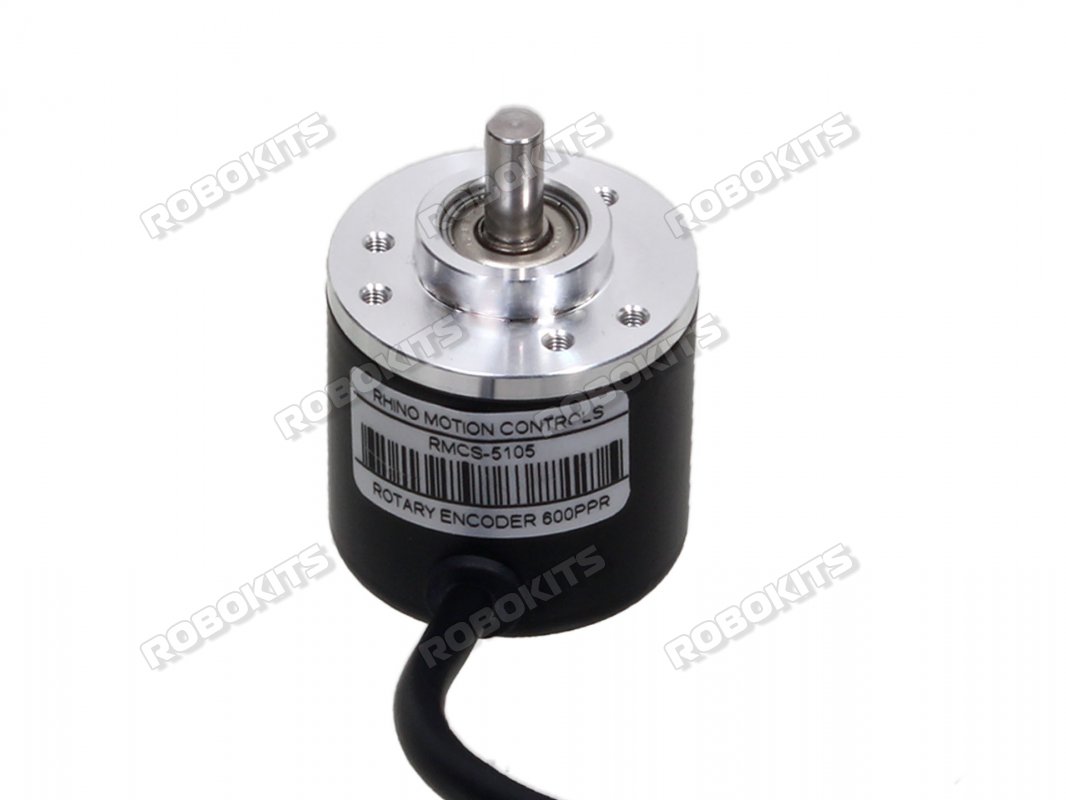

Rotary Quadrature Encoder 600PPR/2400CPR

0 out of 5 stars Write a Review.
    Free Economy Shipping option available
  • Availability :
  • In Stock
  • Warranty :
  • None
  • Model :
  • RMCS-5105
₹1,522 (Incl. GST)
₹1290 Excluding 18% GST
GST Input Tax Credit of ₹232 Available. (Know More)


Add to Cart:



Got Better Price

  • Description
  • Downloads & Media
  • Reviews

This is an 0.15 degree resolution optical encoder with quadrature outputs for increment and decrement counting. It will give 2400 transitions per rotation between outputs A and B. A quadrature decoder is required to convert the pulses to an up or down count. The Encoder is build to Industrial grade.


Incremental Encoder Specifications

  • 6mm Shaft Dia with D notch
  • 2400CPR and Max 5000 RPM
  • Body Dia 38mm
  • Power Supply: 5-24V
  • Current Consumption: <= 60mA
  • Open collector and NPN configuration.
  • Shell Material: Aluminum
  • Cord Length: 1.5m
  • Operating Temp: ~10°C~70°C(Non-Freezing)

Power and Input Terminal Assignments

Terminal No.

Terminal Name

Wire Color

Description

Terminal 1

Enc A

WHITE

Quadrature encoded output A

Terminal 2

Enc B

GREEN

Quadrature encoded output B

Terminal 3

VCC

RED

VCC should be connected to +ve 5V of supply

Terminal 4

GND

BLACK

Ground should be connected to negative of supply








Downloads

Datasheet



Rotary Quadrature Encoder 600PPR/2400CPR
Rs. 1522 In Stock
This is an 0.15 degree resolution optical encoder with quadrature outputs for increment and decrement counting. It will give 2400 transitions per rotation between
Be the first to write a review.  Write a Review.
Disclaimer : Actual product may vary from the product photograph displayed above. Photograph just for reference.
