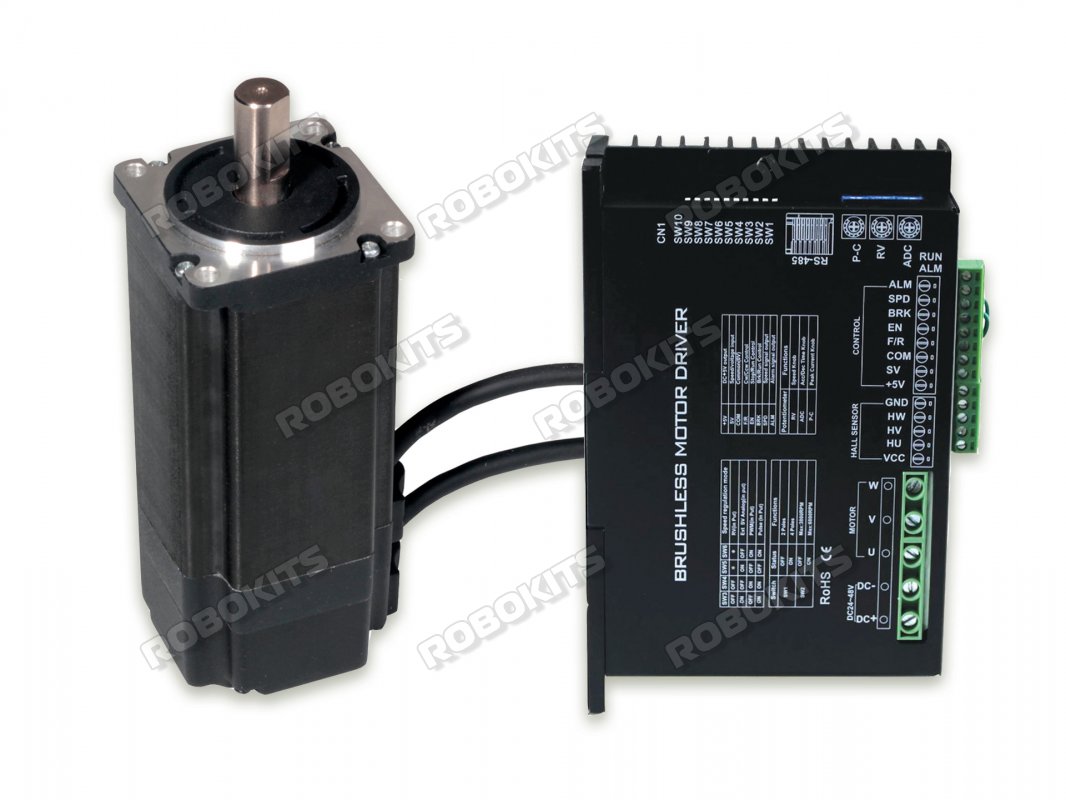

Rhino Industrial NEMA24 400W Brushless (BLDC) DC Motor with RMCS-6611 750W Drive

Model: RMCS-3055
Availability : In Stock
₹12,512.00
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹2252.16 available. (Know More)
Warranty : 3 Months
Free Economy Shipping option available
QTY :

This combo includes NEMA24 24V Brushless dc motor with Hall Low Noise and Brushless Driver with Rated current capacity of 5A and peak current of 20A.

Brushless dc motor with Hall Low Noise works on 24V providing 3000RPM output. The driver comes with ENABLE, BRAKE and DIRECTION inputs that are optically isolated.
Motor Specifications:
  • Voltage (V): 24VDC
  • Speed(Rpm): 3000 Rpm
  • Continuous Current(A): 25A
  • No -Load current : 0.6A
  • Rated Power: 400W
  • Rated Torque: 1.27 N.m
  • Number Of Poles: 8
  • Motor length without shaft: 141mm
  • Shaft lenght: 31mm
  • Shaft Dia: 14mm
Drive General Specifications:
  • Input Supply Voltage: 24 to 48V
  • Power: 750 Watt
  • Rated current : 5A
  • Peak Current: 30A
  • Smooth and quiet operation at all speeds and extremely low motor heating
  • Fully configurable position and velocity loop
  • Delivers up to 5A of continuous current
  • Short-circuit protection for the motor outputs, over-voltage and under-voltage protection
  • LED indication for power
  • Ambient Temperature : 0-70°
Note: For more information of drive click here








Downloads


RMCS-6611 BLDC 750W Drive User Manual

RMCS-6611 PC Software Setup

RMCS-6611 Arduino Library

Datasheet
