The RFM69CW is optimized for low power consumption while offering high RF output power and channelized operation. Compliance ETSI and FCC regulations.In order to better use RFM69CW modules, this specification also involves a large number of the parameters and functions of its core chip RF69's,including those IC pins which are not leaded out. All of these can help customers gain a better understanding of the performance of RFM69CW modules, and enhance the application skills.

Features:

• +13 dBm Power Output Capability
• High Sensitivity: down to -120 dBm at 1.2 kbps
• High Selectivity: 16-tap FIR Channel Filter
• Bullet-proof front end:
• IIP3 = -18 dBm,
• IIP2 = +35 dBm,80 dB Blocking Immunity, no Image Frequency response
• Low current: Rx = 16 mA, 100nA register retention
• Programmable Pout: -18 to +13 dBm in 1dB steps
• Constant RF performance over voltage range of module
• FSK Bit rates up to 300 kb/s
• Fully integrated synthesizer with a resolution of 61 Hz
• FSK, GFSK, MSK, GMSK and OOK modulations
• Built-in Bit Synchronizer performing Clock Recovery
• Incoming Sync Word Recognition
• 115 dB+ Dynamic Range RSSI
• Automatic RF Sense with ultra-fast AFC
• Packet engine with CRC-16, AES-128, 66-byte FIFO
• Built-in temperature sensor
• Module Size:16X16mm

Applications

• Automated Meter reading
• Wireless Sensor Networks
• Home and Building Automation
• Wireless Alarm and Security Systems
• Industrial Monitoring and Control
• Wireless M-BUS

Package Includes:

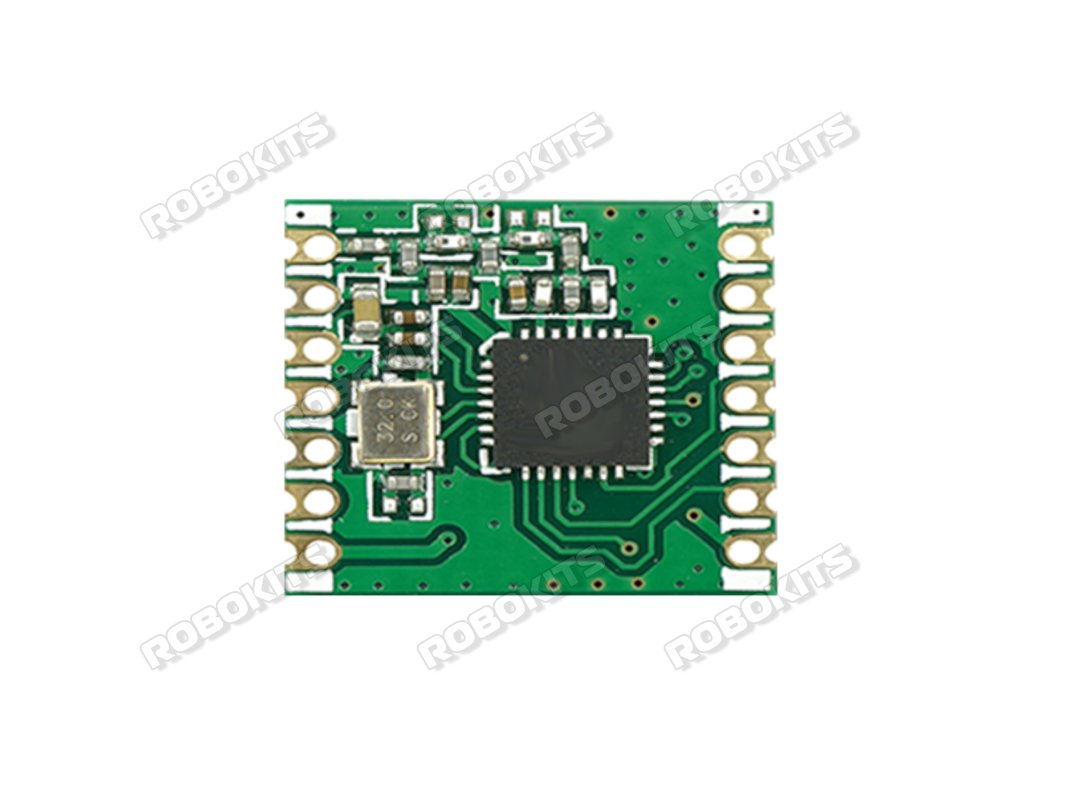

• 1 x RFM69CW Wireless Transceiver Module
