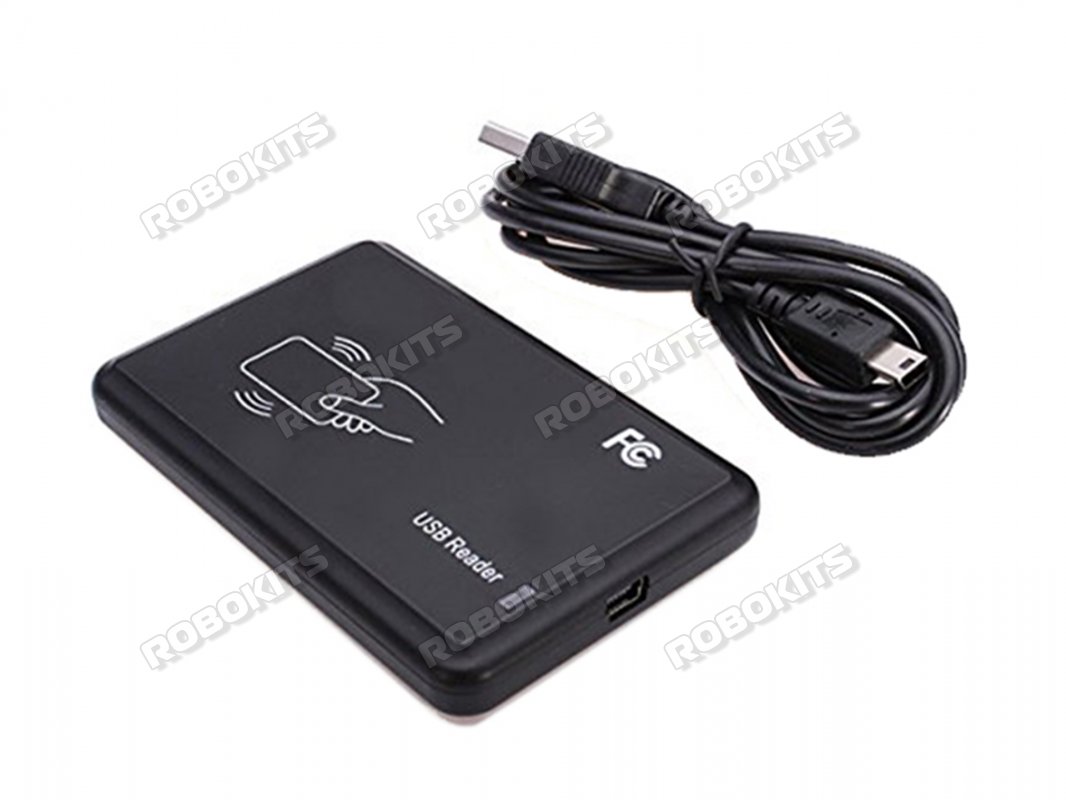

JT308 is a compact simple and fast 125Khz RFID Reader with a USB interface. It reads the ID number from the EM 4100 card or a compatible card. After detecting the card, the card number is sent directly via the USB interface, just like the entry number from the USB keyboard. JT308 RFID Reader is a standard HID devices, means you don't need to install any driver, the code can be read into any input editor.

For example: Notepad, WORD and other text editing software.

Overview:

• Mode: JT308
• Frequency: 125 KHz
• Power input: through usb
• No drivers required



Features:

• USB interface, no driver required
• Reads the EM card inside the ID number and send it to the computer via the USB interface
• The output format can be selected by management cards
• Support for EM4100 cards



Specifications:

• Power input: USB (from a PC)
• Interface: USB, 106bit / s, no additional driver required.
• Reading distances up to 8 cm
• Frequency: 125 KHz
• Temperature: -30 degrees Celsius to +60 degrees Celsius
• Humidity: 5% -95% Relative humidity No condensation Noise
• Visual signaling: LED output and buzzer
• Output card format: 8H10D
• USB cable length: approx. 120 cm / 47in
• Dimension (mm) : 95  x  61  x 10
• Weight: 33 grams

Note: RFID Tag / Card is not included with this product



Compatible Product:

RFID Tag 125 KHz



How to Use

• Connect the card reader to the computer USB port with the given usb cable.
• The reader will 'Beep' sound and flash about that power successfully, and then half a second after the 'Beep' sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
• Open EXCEL, MS word or Notepad,the card number would be input by self.



Package Includes:

• 1 X JT308 RFID Card Reader
• 1 X USB Cable
