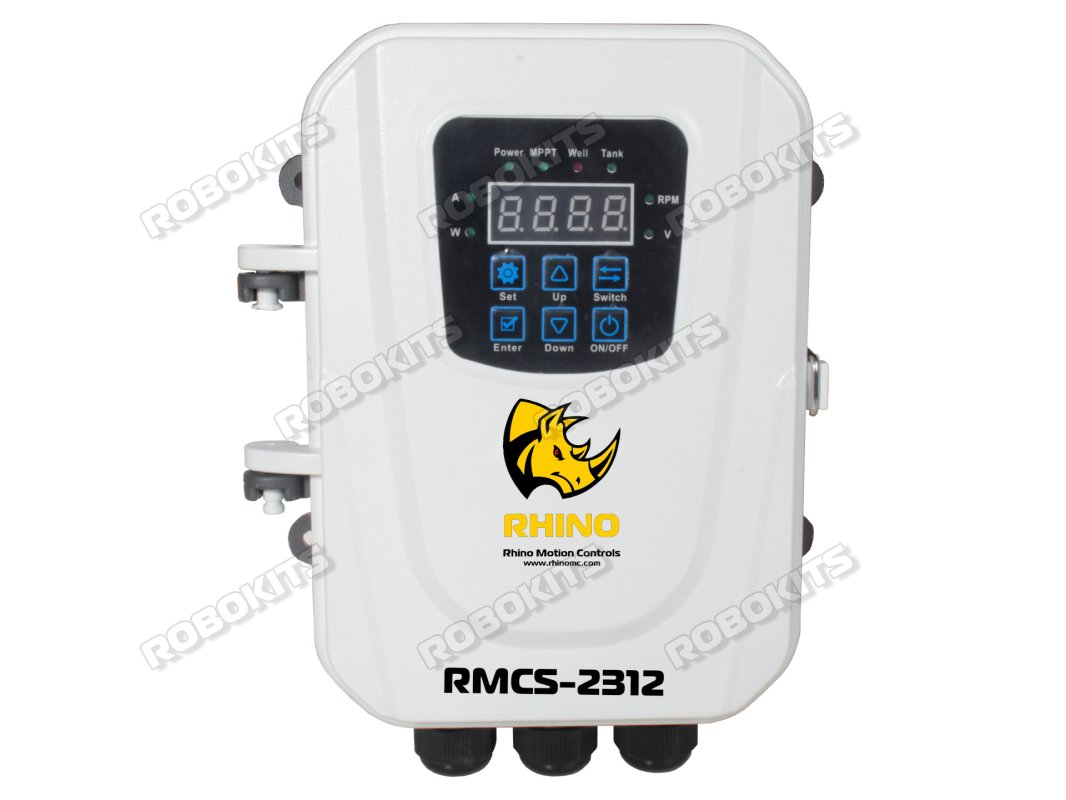

The RHINO SOLAR PUMP VFD is Designed to Deliver Water in Remote Locations Where Access to Reliable AC Power May Be Uncertain or Non-existent Also It is Suitable for All the Loactions. This Controller Operates Seamlessly on DC Power Supplied by the Pv Array. During Sunny Days, the Solar Pumping System Can Consistently and Efficiently Move Water. In Instances Where There Are No Batteries or Other Energy Storage Devices, It is Advisable to Pump Water to a Reservoir for Future Use. Water Sources Can Range From Natural Bodies Like Rivers, Lakes, and Wells to Specialized Waterways.



To Manage the Pump's Operation Effectively, a Float Switch Can Be Installed in the Water Tower. This Solar Pump Controller Continuously Monitors System Performance and Detects a Variety of Abnormal Conditions. In Many Cases, the Controller Will Compensate as Needed to Maintain Continuous System Operation. However, if There is a High Risk of Equipment Damage, the Controller Will Protect the System and Display the Fault Condition. The Solar Pump Controller is a Variable Speed Motor Drive Designed to Operate Various BLDC and  AC Induction Pump Sets Specifically Engineered for 1HP Pumps.

Solar VFD Features:

• Operates 2 Types of Motors BLDC and AC Induction.
• It can Run Low Voltage with TWO - THREE ( MONO - Monocrystalline / POLY - Polycrystalline ) Solar Panels.
• It Accepts Direct Input from Solar Panels within the Range of DC 60V To 150V.
• Continuous and Highly Efficient Power Tracking achieved at 99% through MPPT (Maximum Power Point Tracking) in Solar Type (V/F) Systems.
• Ideal for 1HP AC Induction Motor or BLDC Motor.
• Rated to Handle up to 1000w Input DC Power with 10amps of Continuous Input Current.
• Operating Flawlessly within an Ambient Temperature Range of 0 to 60 Degrees Celsius.
• This System Prioritizes Safety with Built-in Features Such as Reverse Polarity Protection, Over-Temperature Safeguards, Under-Voltage Protection, and Overload Protection.
• Float Sensor Inputs can be Connector to Control the Water Level in a fixed Tank System. In case a Float Sensor is not intended to be used Please Hook up a Short Circuit Wire between 0V / Reference and TL Input.





Power and Motor Terminals:

Terminal Name	Description
P+	Positive DC Input from Panel (Brown)
P-	Negative DC Input from Panel (Black)
U	Motor Phase 1 (Red)
V	Motor Phase 2 (Yellow)
W	Motor Phase 3 (Blue)

Terminal No.	Terminal Name
TH	Tank High Input (RED)
TL	Tank Low Float Sensor Input (GREEN)
EX	External Voltage
GND	Reference Voltage for Float Sensor (BLACK)

Button Name	Function
Set	Saves the Parameters to Memory
Enter	Moves to the Next Parameter
Up	Increases the Parameter Value
Down	Decreases the Parameter Value
Switch	Changes the LED Segment Display    Parameters as per the above
ON/OFF	To turn ON or turn Off the inverter
