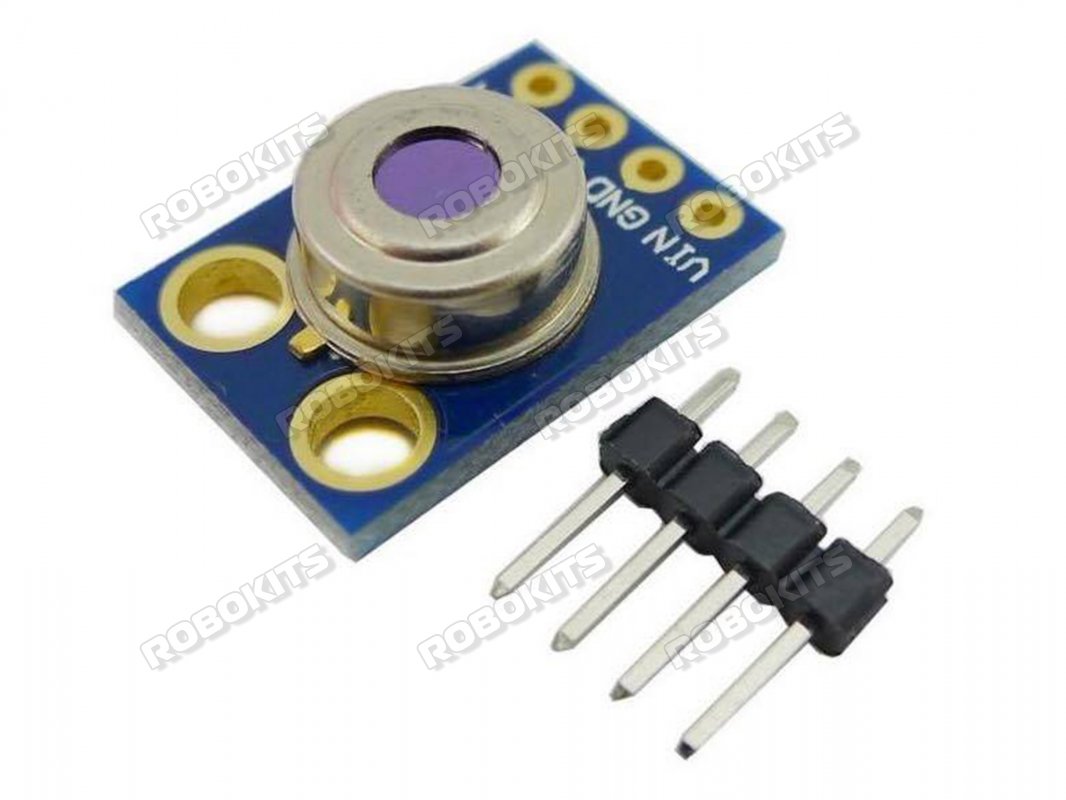

Infrared Temperature Sensor GY-906 MLX90614

Model: RKI-3199
Availability : In Stock
₹863.00
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹155.34 available. (Know More)
Warranty : None
Buy 2 or more pieces to get Free Shipping Option
QTY :

MLX90614ESF-BAA-000-TU-ND is an infrared thermometer for non-contact temperature measurements. It can use with any microcontroller that can communicate with it through it's I2C interface.
Features:
  • Easy to integrate
  • Mounted on a breakout board with two types of pins
  • 10k Pull up resistors for the I2C interface with optional solder jumpers
  • Factory calibrated in temperature range:
    • -40+125°C for sensor temperature
    • -70+380°C for object temperature
  • High accuracy of 0.5°C over wide temperature range (+50°C for both) High (medical) accuracy calibration
  • Measurement resolution of 0.02°C
  • Single and dual zone versions
  • SMBus compatible digital interface
  • Customizable PWM output for continuous reading
  • Different package options for applications and measurements versatility
Applications:
  • High precision non-contact temperature measurements
  • Automotive blind angle detection
  • Multiple zone temperature control – up to 127 sensors
  • Thermal relay / alert
  • Movement detection
  • Livestock monitoring
  • Body temperature measurement
Package Includes:
  • 1 x INFRARED TEMPERATURE SENSOR GY-906 MLX90614
