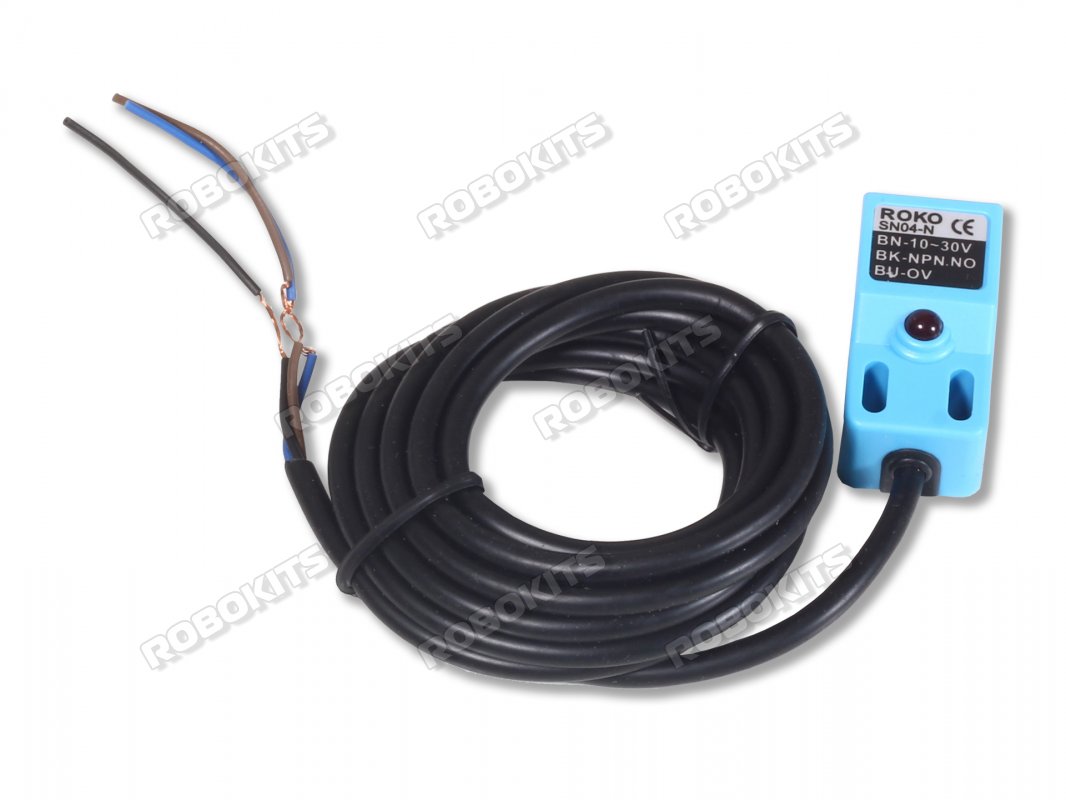

Inductive Proximity Sensor - Magnetic switch

Model: RKI-1193
Availability : In Stock
₹111.00
Current Reviews: 1 Add Your Review
GST Input Tax Credit @ 18 % of ₹19.98 available. (Know More)
Warranty : 1 Month
Buy 9 or more pieces to get Free Shipping Option
QTY :

General purpose magnetic switch which can be used for end stop in CNC applications. You can simple avoid mechanical switch.
Specifications:
  • Detecting Distance: Max 5mm
  • Sensor Type: Proximity (Inductive)
  • Sensor Output Switch Type: Normally Open
  • Supply Voltage Min: 10VDC
  • Supply Voltage Max: 30VDC
  • Current Consumption: Max 5mA
  • Response Frequency: 500Hz
  • Wire Type: DC 3 Wire Type (Brown, Black, Blue)
  • Theory: Inductance Sensor
  • Output Type: NPN, NO
  • Output Switching: Transducer
  • Cable Length: 1 meter
  • Material: ABS Plastic
  • Operating Indicator: Red LED
  • IP Rating: IP67
  • Operating Temperature Min: -25 °C
  • Operating Temperature Max: 75 °C
Colour Codes:
  • Brown: +VDD
  • Blue: GND
  • Black: Signal
Package Includes:
  • 1 x INDUCTIVE PROXIMITY SENSOR - MAGNETIC SWITCH
