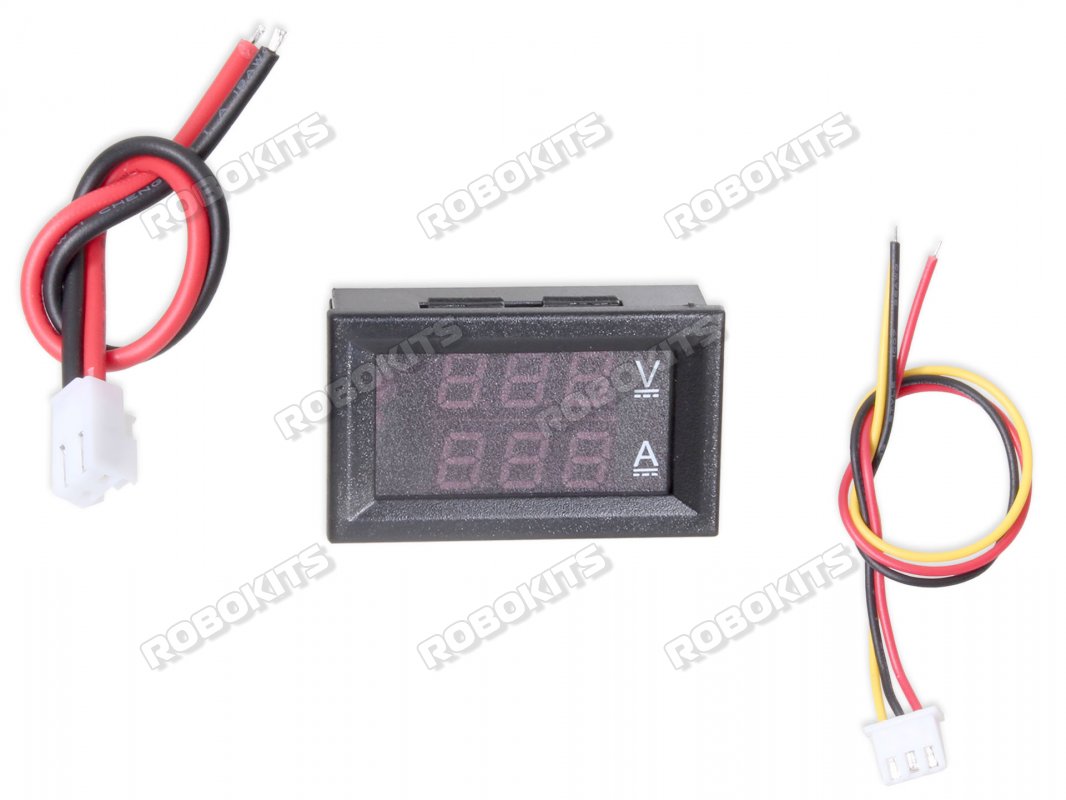

0.28Inch Digital Voltmeter Ammeter DC 0-100V 10A Monitor Panel

Model: RKI-2701
Availability : In Stock
₹244.00  ₹225.00
Sale
-8%
Current Reviews: 1 Add Your Review
GST Input Tax Credit @ 18 % of ₹40.5 available. (Know More)
Warranty : None
Buy 5 or more pieces to get Free Shipping Option
QTY :

Small size, portable, the magnitudes of voltage and current are displayed in the same screen simultaneously.
Specifications:
  • Supply voltage: 4.5 - 30V (wide range)
  • Voltage measurement range: DC 0-100V
  • Current measurement range: DC 0-10A
  • Display screen: 0.28 inch LED
  • Operating current:<20mA
  • Measuring speed:≥ 500mS/times
  • Accuracy: 1%(± 1 word)
  • Minimum operating voltage: +4.5 V
  • Maximum operating voltage: +30 V
  • Operating Humidity:10～80%
  • Operating temperature: -10～+65
  • Operating pressure: 80 ~ 106kPa
  • 10A inbuilt Shunt
Wiring Diagram:
  • Red line thin: power supply+
  • Black line thin: power supply -
  • Yellow line thin: IN+, current input
  • Red line (thick): PW+, measuring terminal voltage input positive
  • Black line (thick): COM, common measuring
Package Includes:
  • 1 x 0.28INCH DIGITAL VOLTMETER AMMETER DC 0-100V 10A MONITOR PANEL
