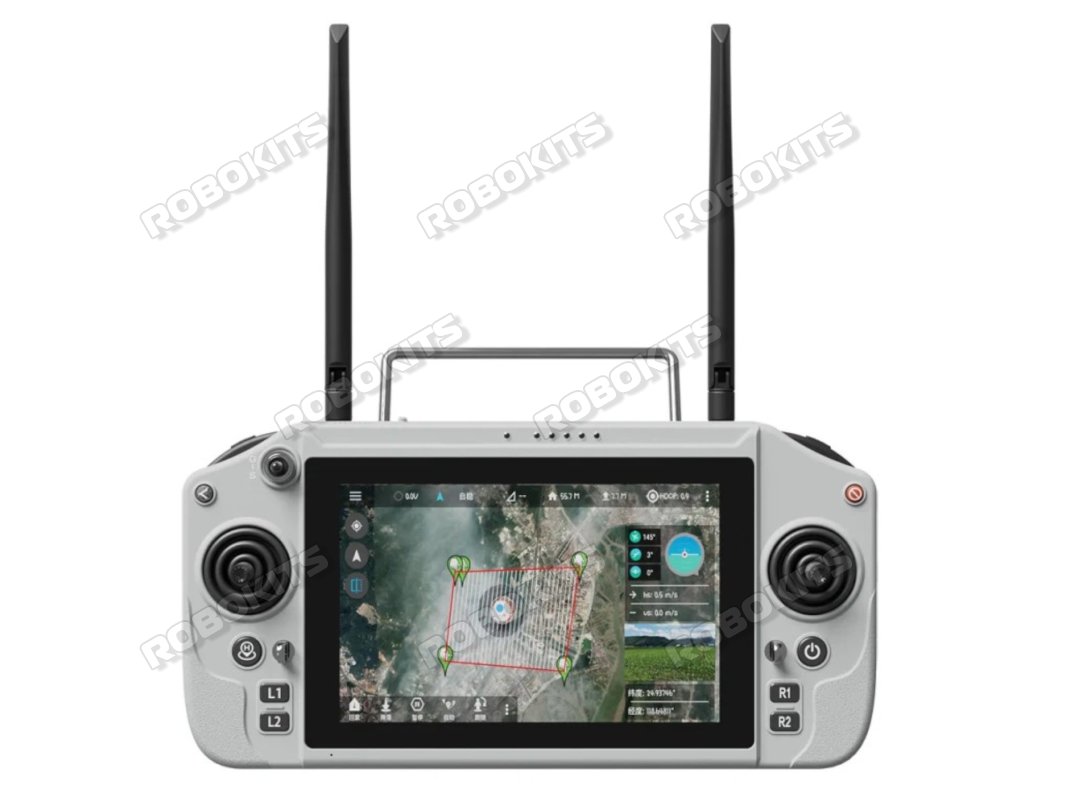

Skydroid G20 Remote Controller is equipped with Qualcomm’s latest 6nm processor and the Android 13 system, which can easily perform hardware decoding on H264/H265 and 4K video streams, and can run all kinds of ground station software smoothly
- Qualcomm 6nm processor
- 7-inch hiqh-definition and high – brightness display screen
- 30KM image transmission and control
- Long battery life with 36W PD fast charging
- Android 13 system
- Dual-band automatic switching between 2.4GHz and 5.8GHz
Endurance time
The battery life can reach 8 to 12 hours, and it also supports 36W PD fast charging. With fast charging, the long battery life is ensured. The new platform reduces power consumption and heat generation, effectively extending the battery life.
30KM Remote control image transmission
Skydroid’s unique digital image control link technology enables the G20 to achieve a 30KM image transmission and remote control distance.
Dual-band of 2.4GHz / 5.8GH2
G20 is equipped with dual frequency bands of 2.4GHz and 5.8GHz. It can automatically switch according to the actual flight environment and requirements to ensure the stability of the signal and transmission efficiency, and further improve the anti-interference ability of communication.
High – definition image transmission
G20 supports long-distance high-definition digital image transmission, presenting a clear view in real time, putting all the details right at your fingertips.
Abundant interfaces
G20 supports SIM card network ports and Type-C interfaces. The receiver is equipped with a wealth of interfaces such as serial ports, PWM (Pulse-Width Modulation), and SBUS, and it supports video equipment like cameras, gimbals, and pods with various network ports.
Specifications
G20 Remote Control Parameters
- Display : 7” industrial FHD touch screen
- Resolution : 1920 × 1200
- Processor : Qualcomm 6nm
- OS : Android 13
- RAM / Storage : 8GB / 128GB
- Battery Capacity : 20000mAh
- Endurance : 8–12 hours
- Charging Interface : TYPE-C, 36W PD
- Size / Weight : 277×138×96mm / 1.2kg
- Frequency Band : 2.4GHz / 5.8GHz Dual Band
- Dynamic Frequency : Automatic Frequency Hopping
- Transmission Distance : 5–30KM (ground-to-air, visual)
- RF Power : 23dBm @CE/FCC
- Operating Temp. : -10°C to 55°C
- External Interfaces : USB, SIM card, Type-C, serial, SBUS, PWM
GR01 Receiver Parameters
- Frequency : 2.4GHz / 5.8GHz
- Voltage Range : 7.2–72V (XT30)
- Operating Current : 12V / 300mA
- Serial Baud Rates 57600 / 115200 / 921600
- Data Transmission : 1 channel, 200Kbps–160Mbps
- Network / SBUS Ports 1 channel each
- PWM Output : 3 channels
- RF Power : 23dBm @CE/FCC
- Channel Bandwidth : 1.25MHz to 40MHz (selectable)
- Dimensions / Weight : 45.5×60×21.5mm / 37g
- Operating Temp. : -10°C to 60°C
