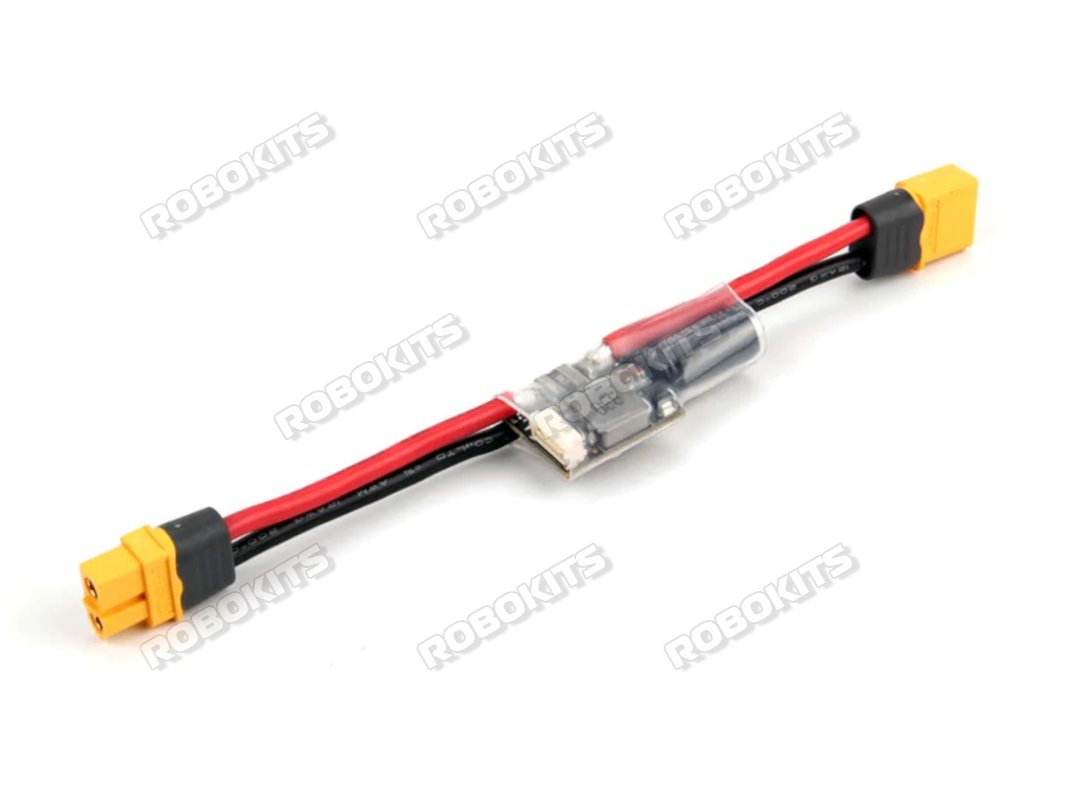

Holybro Pixhawk Power Module PM02 V3 12S

Model: RKI-1575
Availability : In Stock
₹1,875.00
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹337.5 available. (Know More)
Warranty : None
Free Economy Shipping option available
QTY :

This PM02 Power Module provides a simple way to supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable. It comes with pre-soldered wires, capacitor, and XT60 connector on both ends, along with shrink tubing on the PCBA for physical protection.
Specification:
  • Input Voltage: 2S-12S
  • PCB Cont. Current Rating: 60A
  • PCB Burst Current Rating: 100A (<60 Sec)
  • Max Current Sensing: 120A
  • Output: DC 5.2V & 3A Max
  • Voltage Divider: 18.182
  • Amperes per Volt: 36.364
  • Weight: 20g
Note:
  • The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
  • This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).
Specification:
  • 1 x Holybro Power Module PM02 V3 12S
