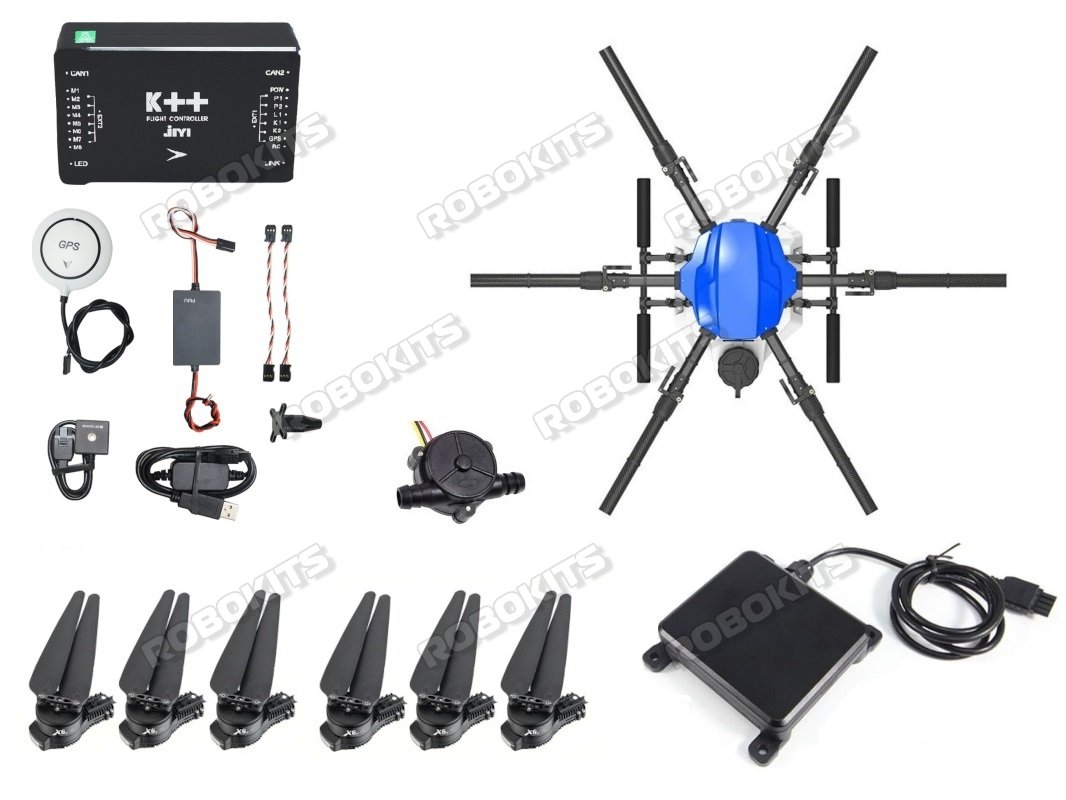

Package Includes:
- 1 x EFT E Series E610P Agriculture Drone Frame 25kg take-off weight with 10L Tank capacity
- 6 x Hobbywing XRotor X6 CW / CCW 180KV Motor and ESC Combo Original
- 1 x JIYI Flight Controller K++ V2 for Agricultural Drone Kit with GPS, Remote LED and PSU Original
- 1 x JIYI Terrain Following Radar Sensor for Agricultural Sprayer Drones UAV
- 1 x Water flow sensor
Recommended Products Description:
EFT E610 drone frame
This EFT E610 drone frame is a high-quality drone frame. It features a sturdy and durable carbon fiber frame, which provides excellent stability and strength for flying in various environmental conditions. With a takeoff weight capacity of up to 25kg, the EFT E610 agriculture drone frame can carry a wide range of agricultural sensors and equipment, making it ideal for crop monitoring, surveying, and spraying. Overall, the EFT E610 agriculture drone frame is a reliable and efficient option for farmers and agricultural professionals looking to streamline their operations and improve crop yields.
Product Parameter::
| Motor |
X6 |
| Propeller |
23-24inch |
| ESC |
80A FOC |
| Supply voltage |
12S |
| Maximum take-off weight |
25kg (approx) |
| Wheelbase |
1404mm |
| Opening size |
1495*1308*500mm |
| Folding size |
945*848*500mm |
| Tank capacity |
10L |
| Frame weight |
5kg (approx) |
HOBBYWING XROTOR X6
The XRotor Pro X6 brushless power system is a power system capable of carrying a load of 3~5kg (per axis) for agricultural drones. It can provide the thrust of up to 11.9kg and match28/30mm carbon fiber tube arms. It’s waterproof and dustproof to IPX7 standard and resistant to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature and impact. It also features the algorithm used for optimizing the FOC ESC &motor system and making the system more balanced, multiple protections like power-on self detection, power-on abnormal voltage, over-current and motor lock-up, and the real-time data output function.
Specification:
| Max Thrust |
12kg/Axis (48V, Sea Level ) |
| Recommended LiPo Battery |
12S LiPo |
| Recommended Takeoff Weight |
3-5kg/Axis(48V，Sea Level) (approx) |
| Product Weight (ESC/Motor/Prop) |
720g (approx) |
|
Waterproof Rating
|
IPX7 |
| Operating Temperature |
-20℃~65℃ |
Motor:
| Stator Size |
70mm |
| KV Rating |
180kv |
| O.D of Carbon Fiber Tube |
φ30mm/φ28mm (*Tube Adapter will be Needed) |
| Bearing |
Imported Bearing |
ESC:
| Recommended LiPo Battery |
6-12S LiPo |
| PWM Input Signal Level |
3.3V/5V (Compatible ) |
| Throttle Signal Frequency |
50-500Hz |
| Operating Pulse Width |
1100-1940 μs (Fixed or cannot be Programmed) |
| Max. Input Voltage |
52.2V |
| Max. Input Current (Cont.) |
80A(w/ Good Heat Dissipation) |
| Max. Peak Current (10s) |
100 A (w/ Good Heat Dissipation) |
| BEC |
No |
| Nozzle Mounting Holes |
Φ30mm/28mm |
Propeller:
| Diameter×Thread Pitch |
2388 |
| Weight |
91g (w/ Propeller Adapter, Single Blade: 36g) (approx) |
Battery
The GenX Power Premium Lipo batteries are the gold standard for performance in the High Discharge Lipo Battery Segment. The 16000 mah Batttery is a 25C discharge rating cell which has a burst current of upto 50C. With the best energy density and weight to energy ratio available in the market, the GenX Power Premium Lipo Batteries are the most compact cells in the segment and stand out from the other available batteries.
The GenX Power Premium 22.2V 6S 16000mAh 25C Lipo Battery with AS150 connectors is a 6s1p battery pack with a nominal Voltage of 22.2V. This battery pack has 6 cells connected in series with a capacity of 25C continuous discharge. The nominal capacity of the battery pack is 16000mah.
Each battery pack is made with matched impedance cells to provide the maximum usable time after each charge. This battery is guaranteed for performance in professional drones, agricultural drones and other demanding multi-rotor and fixed wing aircrafts.
Features:
- Each battery pack is made with impedance matched cells for maximum performance
- Most compact and minimum weight for the capacity
- Higher number of life cycles than other cells.
Specifications:
- Capacity: 16000mAh
- Nominal Voltage: 22.2V
- Configuration: 6S1P (6 cells in Series)
- Discharge Rate: 25C
- Max Burst discharge Rate: 50C
- Net Weight(±2%): 1870g
- Dimensions: 185mm Length x 75mm Width x 74mm Height
Li-Po Battery Usage Guide:
JIYI TERRAIN FOLLOWING RADAR SENSOR
The ground like radar module uses millimeter-wave radar technology. Through continuous scanning of the radar, the aircraft can sense the terrain change in the flight direction, and adjust the flying height in time according to the terrain and crop height to achieve ground-like flight and ensure uniform spraying in flight . The ground-like radar module has stable detection performance and good environmental applicability, strong anti-interference ability, not affected by light, long detection distance, and has the characteristics of all weather and all day.
Features:
- Strong penetrability (including fog, smoke, dust, light rain) is not affected by light
- Strong anti-interference ability, good environmental applicability
- Stable performance, detection distance of 15m
- Power saving and high efficiency, The total power consumption is only 1.5W
- It works all day and all days
- Small size and light weight
Specification:
- Product Weight: <50g
- Modulation Mode: FMC
- Center Frequency: 24. 125GHz
- Usage Environment: No obstruction below Try to stay away from water mist
- Altimetry Range: 0. 3-15m(Relative to the ground)
- Altimetry Accuracy: 0. 05m
- Output Frequency: 50Hz
- Power Waste: 1. 5W @25°C
- Working Voltage: 6-28V
- Working Temperature: -20°C~+85°C
- Output Interface: CAN
HOBBYWING BRUSHLESS WATER PUMP 5L (UAV)
The Brushless water pump is approximately 3-5 times the life of an ordinary water pump. It can be used for more than 500 hours without worrying about pump damage, frequent replacement and any delay in operations. The pump is integrated with both temperature and current protection. These protection functions effectively reduce the loss of overheating the water pump due to sudden failure. The Hobbywing brushless water pump 5L is made from high-quality materials that are durable and long-lasting, ensuring reliable performance and minimal maintenance requirements. It is also designed with advanced safety features, including over-temperature and over-current protection, to help prevent damage to the pump and ensure safe and reliable operation.
Specification:
- Max Current: 10A
- Lipo Rating: 12-14S
- Working Voltage: 12-14S (DC44-60.9V)
- Maximum Power: 150W
- Working Pressure: 0.35Mpa
- Working Current: =2.5A
- Data of opening: 5L/min
- Fixed PWM throttle range: 1050-1950µS
JIYI WATER FLOW SENSOR
The JIYI flow meter is a device used to measure the flow rate of a liquid in a pipeline. It is designed to be accurate and reliable, making it a valuable tool for various industries such as agriculture, water treatment, and oil and gas. The JIYI flow meter is easy to install and provides real-time flow data, allowing for efficient and effective management of liquid resources.
Note : This isn't a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure and sensor orientation. It will need careful calibration if better than 10% precision is required.
Electrical characteristic:
|
Item
|
Examination requirement
|
|
Water pressure resistance performance
|
0.35MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly
|
|
Working medium
|
Water, water standard, use for a long time the temperature is not more than 60 ℃
|
|
Flow range
|
0.2-6L/Min
|
|
Operating voltage range
|
DC4.5-18V
|
|
Max operating current
|
10mA
|
|
output pulse high level
|
In 5 V rated voltage, the output of the high level requirements in 4.5 V above
|
|
output pulse low level
|
In 5 V rated voltage, the output of the low level requirements in 0.5 V the following
|
|
output pulse duty ratio
|
In the rated voltage, the output pulse occupies empties compared to 50%±10%
|
|
Flow pulse characteristics
|
F=25*Q ±10%
|
|
Insulating property
|
Dielectric resistance＞100MΩ
|
|
Electrical strength
|
AC500V 50Hz (Don't breakdown or flash winding)
|
|
Electrical strength(80℃)
|
In +80 ℃ temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
|
|
Cold resistance(-20℃)
|
In- 20 ℃ temperature placed in-72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
|
|
Mode of connection
|
Red: the positive, black: negative, yellow: pulse signal
|
JIYI K++ V2 Flight ControllerKIT WITH GPS, REMOTE LED AND PSU ORIGINAL
Jiyi k++ combines the advantages of the classic flight control K3A, and strengthens the compatibility and multi-redundancy scheme to form a redundant redundancy control system with superior performance and strong reliability
Features:
- Precise Control: Flight accuracy increased by 25%,vertical control accuracy increased by 20%,the trajectory is more precise and the flight is smoother.
- Great Shock Resistance: Double shock absorption structure design to respond a variety of complex vibration effects.
- Multiple Redundant Backup: Three redundant imu,double redundant barometer,makes the flight more safer.
- Noise Reduction and Power Saving: Motor noise is three times smaller,it can save 5~15% electricity.
- Calibration Free: Industrial grade sensor configuration,one calibration,Lifetime free imu calibration.
- Attitude Control: Better wind resistance, and the attitude control is more stable,
- Dual CPU Configuration: Dual CPU configuration, more powerful processing,it supports up to 1000Hz ESC control.
- Backup Power: The main control supports the backup power interface.The power supply is more reliable.
- Intelligent vibration analysis function: K++ comes with intelligent vibration analysis function, which can determine the vibration of the aircraft in real time during flight, and display the safety warning in the APP to help adjust the adaptability of all aspects of the fuselage device, making the flight operation more energy efficient, safer and safer.
- Multiple Backups: K++ is equipped with three redundant IMU and dual redundant barometer sensors. During the flight, the sensor data of IMU is monitored in real time through advanced diagnostic algorithms. When the sensor in the navigation system is abnormal, the system immediately switches to another sensor. To ensure the safe flight of the aircraft.
- One calibration, not afraid of environmental interference: K++ improved from powerful industrial-grade sensor configuration and algorithm optimization. After the same aircraft flight control system is installed, it only needs to be calibrated once. Even if the operating environment is replaced, it does not need to be recalibrated and is easy to use.
Product parameters:
- Supported multi-rotor types:
- Quadcopter (+, X)
- Hexacopter (+, X, IY and YI coaxial twins)
- Octocopter (+ type, X type, V type)
- Supported ESC type: 490HZ or less PWM ESC
- Maximum output channel: 8 channels
Recommended remote control type:
- Supported receiver types: PPM, S-BUS receiver
- Support expansion equipment: K-BOX, IOT, RTK, obstacle avoidance radar, terrain radar, integrated remote control, FPV camera, flow meter, level gauge
- Working voltage: 2-12S
- Power consumption: less than 5W
- Working environment temperature: -10~60°C
- Storage environment temperature: -25~60°C
- Earthquake resistance rating: <1G
Flight characteristics:
- Hovering accuracy: horizontal direction ±1.5 m; vertical direction ±0.5 m
- Maximum tilt angle: 30°
- Maximum yaw speed: 150°/ sec
- SBUS receiver Maximum vertical speed: 6 m / s
- Wind resistance: continuous wind: 4
- Gust: Level 5
- Flight mode and function: Attitude mode, GPS mode, AB operation, route operation, one-button return loss control, out of control continue operation, low voltage protection, fence function, log storage function, landing lock function, no-fly zone function, vibration protection function, star protection Function, active noise reduction function, motor sequence detection function, direction detection function, dual pump mode, drug break protection function, precision spray, water pump switch control, water pump linkage control
SKYDROID T10 2.4GHZ REMOTE CONTROLLER WITH T12 RECEIVER AND MINI CAMERA
T10 Transmitter:
- Number of channels: 10 channels
- Frequency: 2.400-2.483GHz
- Working voltage: 4.2V
- Working Current: 100mA
- Modulation: New FHSS
- Weight: 525g (Approx.)
- Firmware: APP online
- Dimension: 160*150*50mm (Approx.)
- Battery Capacitor: 4000mA
- Charge Port: MICRO-USB
- Application: Helicopter, Fixed wing, Quadcopter, car boat
SKYDROID MINI camera specification:
- Resolution and frame rate: 720P@30
- Size: 30.2x29.8x26.8mm
- Working current: 180mA
- Power supply mode: external power supply 5V
- Weight: 15.6g
- Operating ambient temperature: -10° to 50°C
Receiver data:
- Model: R10
- Working voltage: 4.5-5.5V
- Dimension: 50*31–12(mm) (Approx.)
- channels: 10
- Working Current: 100mA
- Weight: 17 g (Approx.)
