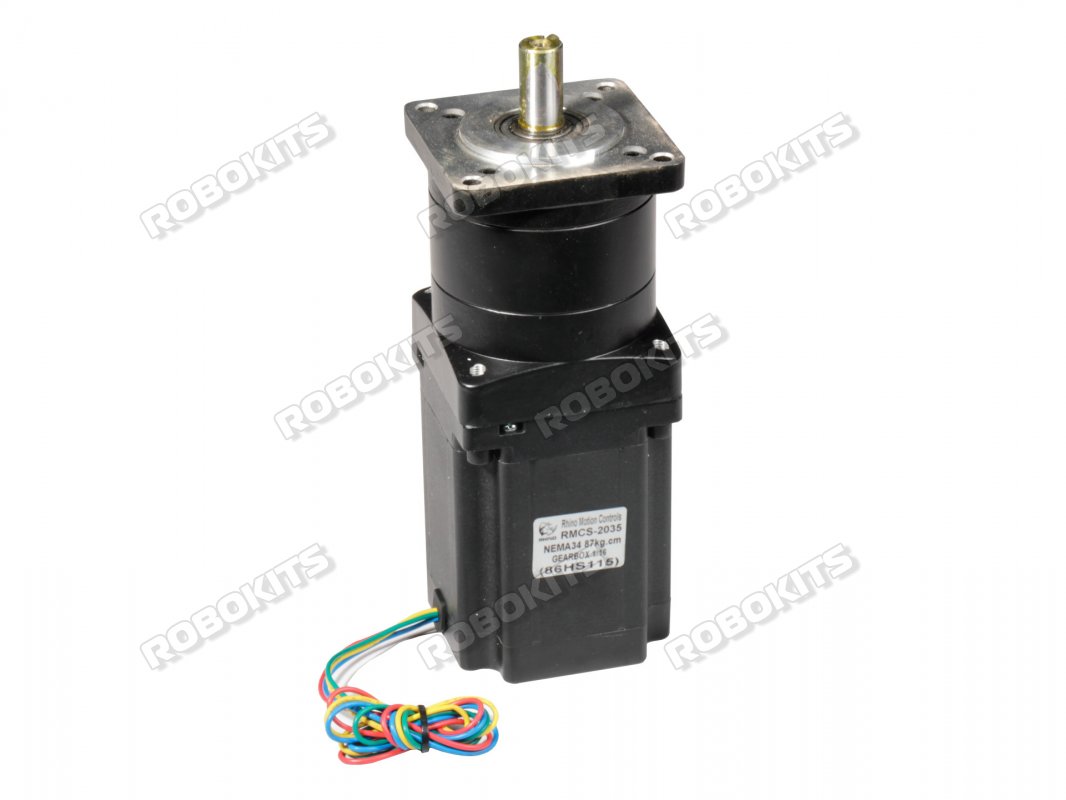

NEMA34 PLANETARY GEARED STEPPER MOTOR 750KGCM

Model: RMCS-2035
Availability : Pre Order
₹10,573.00
Current Reviews: 1 Add Your Review
GST Input Tax Credit @ 18 % of ₹1903.14 available. (Know More)
Warranty : 3 month
Free Economy Shipping option available
DRIVE
Mounting Bracket
Power Supply
QTY :

This is Nema34 Planetary Reducer 86mm stepper motor. The Input shaft is 14mm. Planetary reducer gearbox with a 1:15 gear ratio at rated torque of 750Kg.
Motor Specifications:
  • Step Angle : 1.8 Degree
  • Configuration: 4 wire bipolar stepper motor
  • Phase current : 5Amp
  • Resistance/phase: 0.76ohm
  • Inductance/Phase : 8.5mH
  • Rotor inertia: 2700 gcm2
  • Shaft Dia : 12.7mm
  • Shaft Length : 32mm
  • Total Weight (Motor with Gearbox): 5.8 Kilograms

Gearbox Specifications:
  • Category : Planetary Gear Reducer
  • Flange: 86mm Nema34
  • Efficiency : 96%
  • Speed Ratio : 1:15
  • Noise : <45 DB
  • Backlash : <15 Arcmin
  • Gearbox height : 53mm
  • Output Shaft Dia : 16mm (key shaft)

Wiring Details:
  • A+  = Red
  • A-  = Green
  • B+  = Yellow
  • B-  = Blue

Package Includes:
  • 1 x NEMA34 PLANETARY GEARED STEPPER MOTOR 750KGCM


by Abhishek J.

Best Quality Stepper Motor. And as Per Description it can hold 500 to 750Kgcm Torque. And You can use this motor with Leadshine DM860H stepper Driver.
