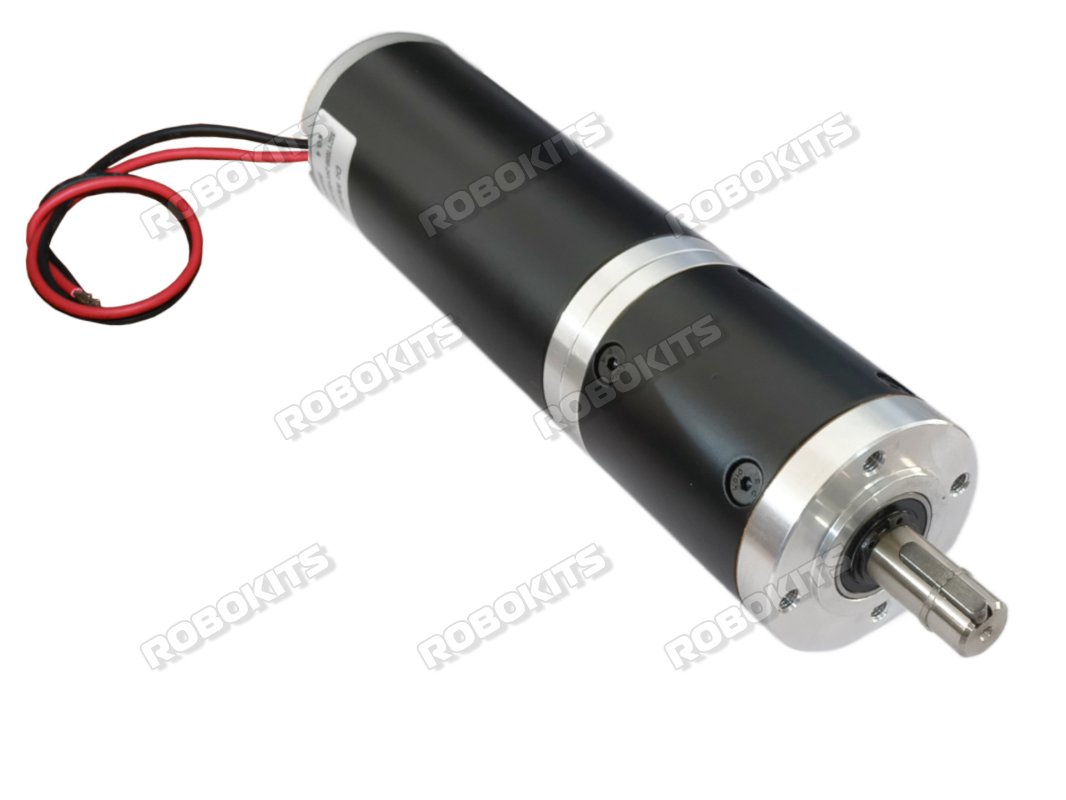

Rhino IG52 50RPM 160Kg-cm 150W Brush DC Planetary Gear Motor

Model: RMCS-2091
Availability : In Stock
₹8,500.00
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹1530 available. (Know More)
Warranty : 3 months against manufacturing defect
Free Economy Shipping option available
QTY :

The Rhino 50 rpm 150W IG52 motor has a rated torque of 160kgcm and a stall torque of 480kgcm. So the motor can be used up till 480kgcm, however the motor should not heat up beyond 40 to 85 degree centigrade.
The base motor of the Rhino IG52 motor is high quality industrial grade 150W 4200 rpm motor which along with the sturdy all metal planetary gear box provides the 50 rpm at the output shaft.
Features:
  • Higher Torque to Volume ratio than any comparative motor in the category.
  • Silent Operation when compared to other make gear box motor.
  • Very low no load current due to high precision gear box.
  • Continuous use in industrial applications
  • Shaft provided with keyway slot and key for positive coupling applications.
  • Alloy steel Shaft of 12mm provides a sturdy and durable output.
Motor Secification:
  • Rated power supply : 24 v dc
  • No load speed : 5200±10% rpm
  • No load current : 1.2A
  • Rated speed : 4200±10% rpm
  • Rated torque : 3.5 kg-cm
  • Rated current : 6.25 Max A
  • Rated output power : 150 W
  • Insulation class : F
  • Protective enclosure rating : IP50
Gearbox Secification:
  • Rated power supply : 24 v dc
  • No load speed : 77 ±10% rpm
  • No load current : 2.0A
  • Rated speed : 50 ±10% rpm
  • Rated torque : 160 Kg-cm
  • Insulation class : F
  • Protective enclosure rating : IP50
  • Ratio : 1 : 77
Package Includes:
  • 1 x Rhino IG52 50RPM 160Kg-cm 150W Brush DC Planetary Gear Motor
