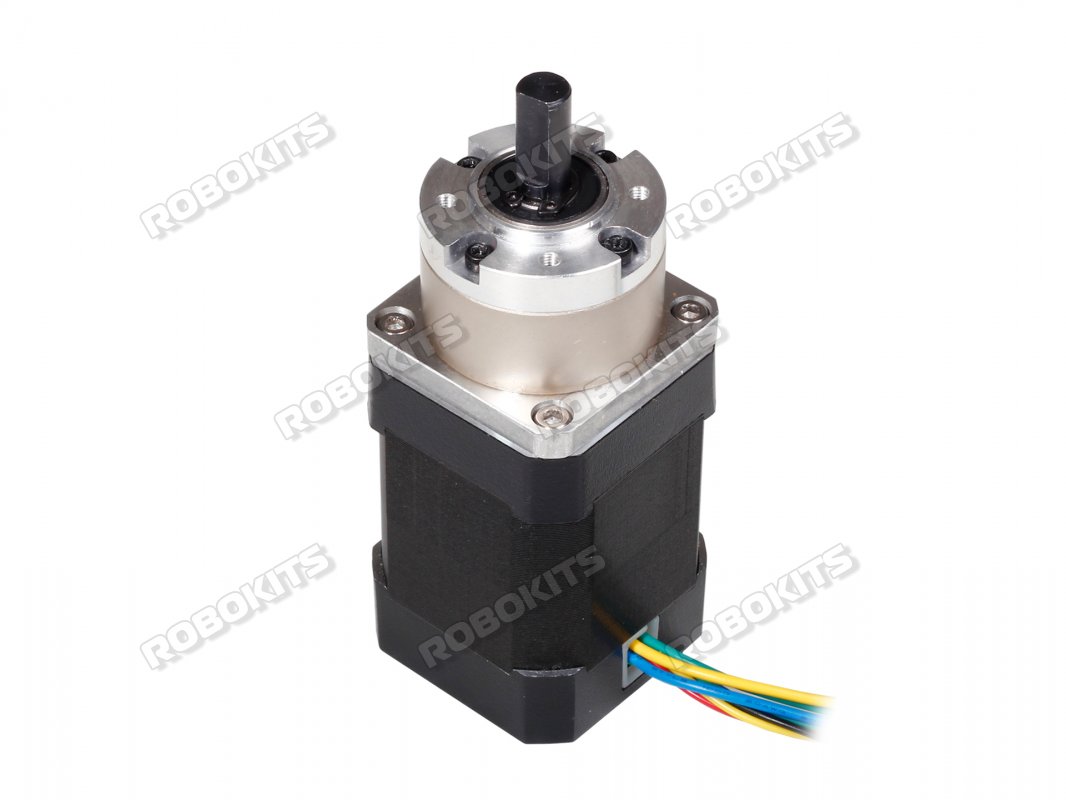

Nema17 Planetary Geared BLDC Motor 19Kgcm 208RPM 52W

Model: RMCS-2022
Availability : In Stock
₹4,410.00  ₹3,865.00
Sale
-12%
Current Reviews: 2 Add Your Review
GST Input Tax Credit @ 18 % of ₹695.7 available. (Know More)
Warranty : 3 month
Free Economy Shipping option available
DRIVE
QTY :

This is Nema17 planetary geared BLDC motor. Integrated Planetary gearbox with a 1:19 gear ratio at rated torque of 19Kgcm at 208RPM.
Motor Specifications with Planetary Gearbox:
  • Rated Toruqe : 19 Kgcm
  • Rated speed : 208 Rpm
  • Gear ratio : 1 : 19
  • Motor length without Shaft & gearbox : 61mm
  • Gear box lengh(L) : 35mm
  • Shaft Length: 20mm
  • Shaft Dia: 8mm
  • Efficiency: 0.81%
  • Weight: 700 grams
Base Motor Specifications:
  • Number of poles : 8
  • Phase to Phase resistance : 0.73 ohms
  • Voltage : 24VDC
  • No load speed : 5800 Rpm
  • No load current : 0.45 Amps Max.
  • Rated torque : 0.125 N-m
  • Output power : 52 W
  • Rated speed : 4000 Rpm
  • Insulation class : B
Motor Wiring Connections:
The motor has 8 wires which need to be connected to the drive as per below :
  • Motor Phase U ( Yellow color 20 AWG wire )
  • Motor Phase V ( Green color 20 AWG wire )
  • Motor Phase W (Blue color 20 AWG wire )
  • Encoder Phase U ( Yellow color 26 AWG wire)
  • Encoder Phase V ( Green color 26 AWG wire)
  • Encoder Phase W ( Blue color 26 AWG wire)
  • Encoder VCC ( +5 V DC Red color wire)
  • Encoder Ground ( Ground Black color wire)
Package Includes:
  • 1 x NEMA17 PLANETARY GEARED BLDC MOTOR 19KGCM 208RPM 52W

Downloads


Datasheet

RMCS-3001 Drive Datasheet

RMCS-3002 Drive Datasheet
