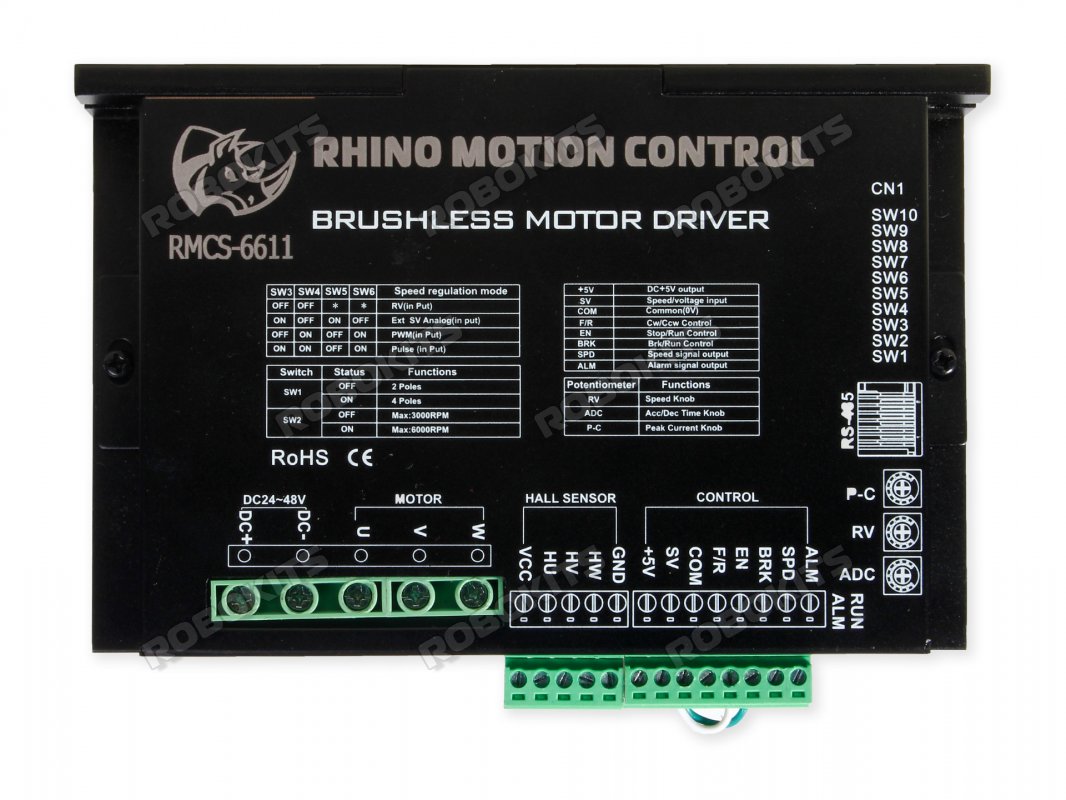

  4. Brushless Motor Driver DC24-48V 750W (BLDC) Modbus RTU Compatible

Brushless Motor Driver DC24-48V 750W (BLDC) Modbus RTU Compatible

Model: RMCS-6611
Availability : In Stock
₹6,970.00
Current Reviews: 2 Add Your Review
GST Input Tax Credit @ 18 % of ₹1254.6 available. (Know More)
Warranty : None
Free Economy Shipping option available
QTY :

Features: ​
  • ​ARM based high speed controller design.
  • Alarm output on error.
  • Can be controlled by PLC, PC Software, Microcontroller, SBC or any other device which can communicate with RTU Modbus.
  • Its also possible to operate without any controller using Onboard or external potentiometer, PWM, Pulse etc.
  • In Analog Speed Control mode Current, Speed and Acceleration can be set by using 3 potentiometers available on drive. Current setting range is 4A - 30A.
  • In Analog Speed Control mode direction can be changed by connecting F/R pin to COM pin of drive.
  • Over current, over voltage, under voltage protection.
  • In this drive torque output and speed is stable at high speed.
  • Up to 15 slaves is available through switch setting, upto 15 motors can be controlled using a single modbus line.
  • When the power is turned on, the drive can start running motor automatically if enable is connected.
  • When break applied motor stops motion if it is running but it will not hold torque.
Technical specifications:

Parameters

      Minimum value

      Typical value

      Maximum

unit

Voltage

20

36

60

V

Current

4

30

60

A

      Logic input current

10

20

50

mA

Hall power supply

 -

5

 -

VDC

Speed ​​control

150

3000

5000

      Rpm

Overview

Name

Description

DC+/DC-

DC voltage input (DC24V~DC48V)

U, V, W

Motor phase line

      Hu, Hv, Hw

Hall signal line

VCC

Hall Power Supply + ( 5VDC )

GND

Hall Power Supply - ( GND )

+5V

External potentiometer power supply

SV

External speed regulation. Dangling when using internal speed control.

COM

Public port (low level)

F/R

Direction, floating or high level is forward rotation, low level reversal

EN

      The high level control signal enables the end stop, the low -level operation

BRK

Brake, low level for normal operation, high level shutdown

SPEED

Speed ​​signal output

ALARM

Alarm ​​signal output

Switch Settings:
      Switch            Status      Functions
SW1 OFF 2 Poles
  ON 4 Poles
SW2 OFF Max: 3000RPM
  ON       Max: 6000RPM



      SW3            SW4            SW5            SW6      Speed regulation mode
OFF OFF * * RV (Input)
ON OFF ON OFF       External SV Analog (Input)
OFF ON OFF ON PWM (Input)
ON ON OFF ON Pulse (Input)

Instructions:
  • The peak output current is set by the P C potentiometer. When the load suddenly becomes large, the output current will be limited to the set value, reducing the motor speed and protecting the motor from damage. The setting range is 4-30A.
  • The RV knob is a speed-adjusting potentiometer. When the motor is energized, the RV can be rotated to adjust the speed.
  • SW7=1 SW8=2 SW9=4 SW10=8 is the 485 address selection bit. Follow the 8421 code to set the address bit.
  • For example: When SW7 and SW9 are ON, the address code of the drive is 5
  • The factory setting of the EN terminal and the COM terminal is to connect the EN terminal to the COM terminal.
  • When the power is turned on, the drive can drive the motor to run by itself.
  • Connect or disconnect the cable between the EN terminal and the COM terminal to control the operation and stop of the motor. When the connection between the EN terminal and the COM terminal, the motor operates. Conversely, the motor stops slowly.
  • By between COM EN and the access switch or the like controlling the PLC off, required for switching the start and stop the motor.
Package Includes:
  • 1 x BRUSHLESS MOTOR DRIVER DC24-48V 750W (BLDC)

Dimensions :



PWM Control Connection:






Downloads


User Manual

PC Software Setup

Arduino Library


by Kavita Singh

Superb drive with speed and current feedback. Support upto 750W Bldc motor.

by Vishwas V.

This is the best BLDC Driver if you want to control through RS-485 Communication. You can use motor upto 750W with this Driver. Using this Driver you can control motor through RV Knob( potentiometer).
