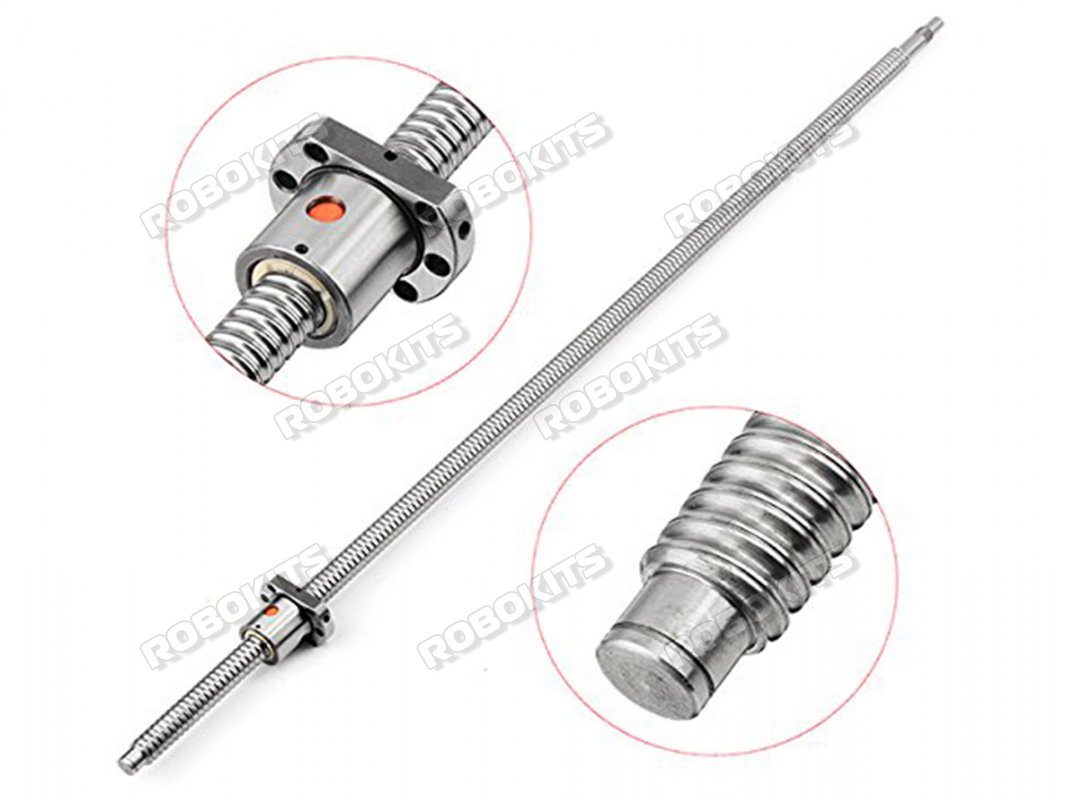

Astro Ball Screw Rod 1610 - 16mm Dia. of 500mm length (with end machining) with SFU1610 Flange Nut Combo

Model: RKI-6116
Availability : Ships Within 5 Days
₹2,200.00
Current Reviews: 0 Add Your Review
GST Input Tax Credit @ 18 % of ₹396 available. (Know More)
Warranty : None
Free Economy Shipping option available
QTY :

The Astro ball screw are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. It has the accuracy rating of the C7 level with 16mm ball screw diameter. Ball screw flange nut SFU1610 with outer diameter of 28mm is provided.

Morever the end machining is already done to fit in the couplings and guiding elements, so you don't have to go to the trouble of getting the end machined. These ball screws are provided in ready to use condition for quick execution of your projects.
Specifications of Ball Screw Rod
  • Model No.: SFU1610 -500.
  • Accuracy Rating: C7 Rolled Ball Screw.
  • Diameter of the Ball Screw Rod: 16mm.
  • Ball Diameter : 3.175mm .
  • Length of Ball Screw Rod: 500mm.
  • End machining done for guiding as per drawing for BK12+BF12 / KP001 + KFL000.
  • Motor coupling dia is also machined to fit with coupling of 10mm ID
Specifications of SFU1610 Flange Nut
  • Nut Material: Bearing Steel.
  • Flange Nut Outer Dia.: 28mm.
  • Quantity: 1 pc.
Drawing Details of 1610 Ball Screw Rod with SFU1610 Flange Nut :




Application
  • 3D Printer
  • CNC Machines
  • Robotics
  • Linear Motion
Package Includes
  • 1Pcs x 1610 Ball Screw Rod of 500mm length
  • 1Pcs x SFU1610 - 28mm Flange Nut
