Nextion Enhanced NX8048K070-011R is a powerful 7.0” HMI TFT capacitive multi-touch display with a beautiful enlcosure, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM, and GPIO supported now customers can use Nextion to control external devices.
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor).
The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It's easy to adapt Nextion family HMI to existing projects- users just need to provide it with a UART.
Features:
- Brand : Nextion
- Model : NX8048K070-011R
- Display Size : 7.0″
- Resolution : 800*480
- Touch Panel : RTP/CTP
- MCU : 108 MHz
- Flash : 32 MB
- SRAM : 8192 Byte
- EEPROM : 1024 Byte
- GPIOs : 8, IO0-IO7 support input, output and component binding event, IO4-IO7 support PWM
- RTC : Yes (CR1220)
- Input Power : DC 5V 2A
- USART Port : XH2.54 4P
- Storage Temperature : -30 ~ 85 °C
- Working Temperature : -20 ~ 70 °C
- Nextion Editor Components : Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture, Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode
- Character Encoding : ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis
- Anti-aliasing font : Yes

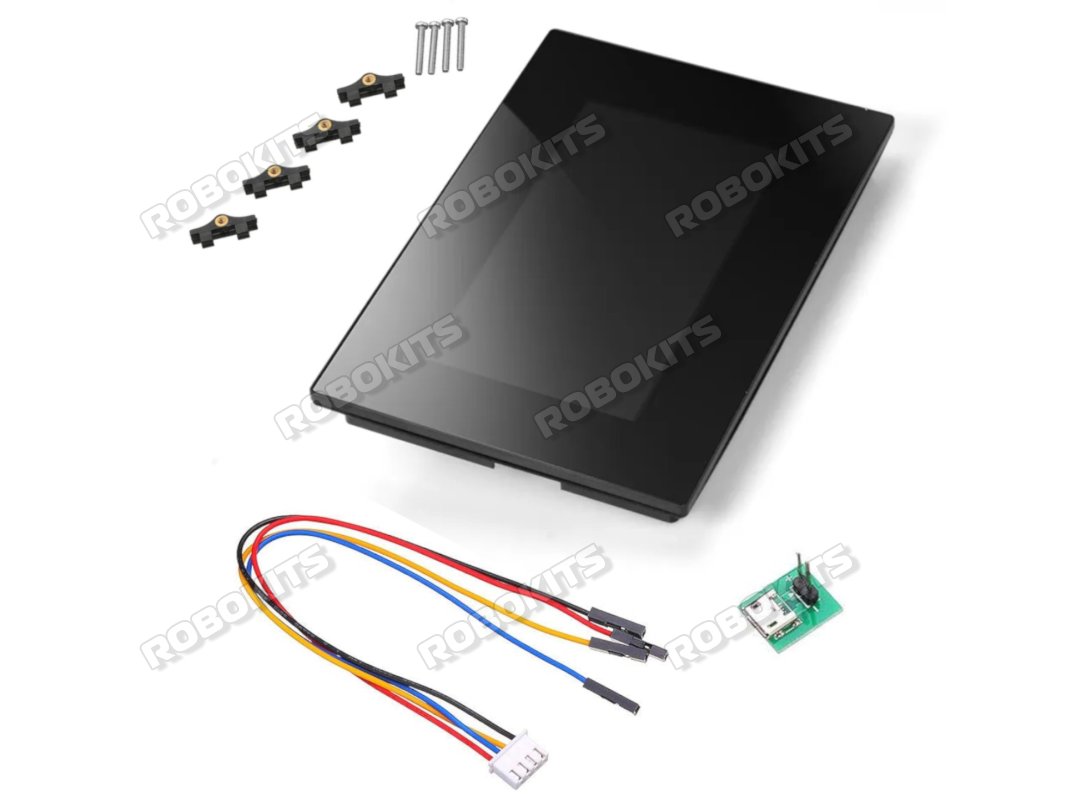

Package Includes:
- 1 x Nextion Enhanced NX8048K070-011R 7.0” HMI Smart UART TFT Touch LCD Display
- 1 x Connecting Cable
- 1 x Power Supply Test Board
