GenX Pro+ Solid State Lithium Ion battery packs are the new best in high performance. They offer exceptional power and dependability for a wide array of applications. With a capacity of 13500mAh and a burst discharge rate of 7C these battery packs ensure top performance even under challenging conditions. With the highest energy density of 350Wh/kg, it deliver unmatched efficiency and endurance
Additionally, GenX Pro+ Solid State Lithium Ion battery packs are known for their impressive energy density and optimal weight-to-energy ratio. This makes them the most compact and efficient option in their category compared to other available choices.

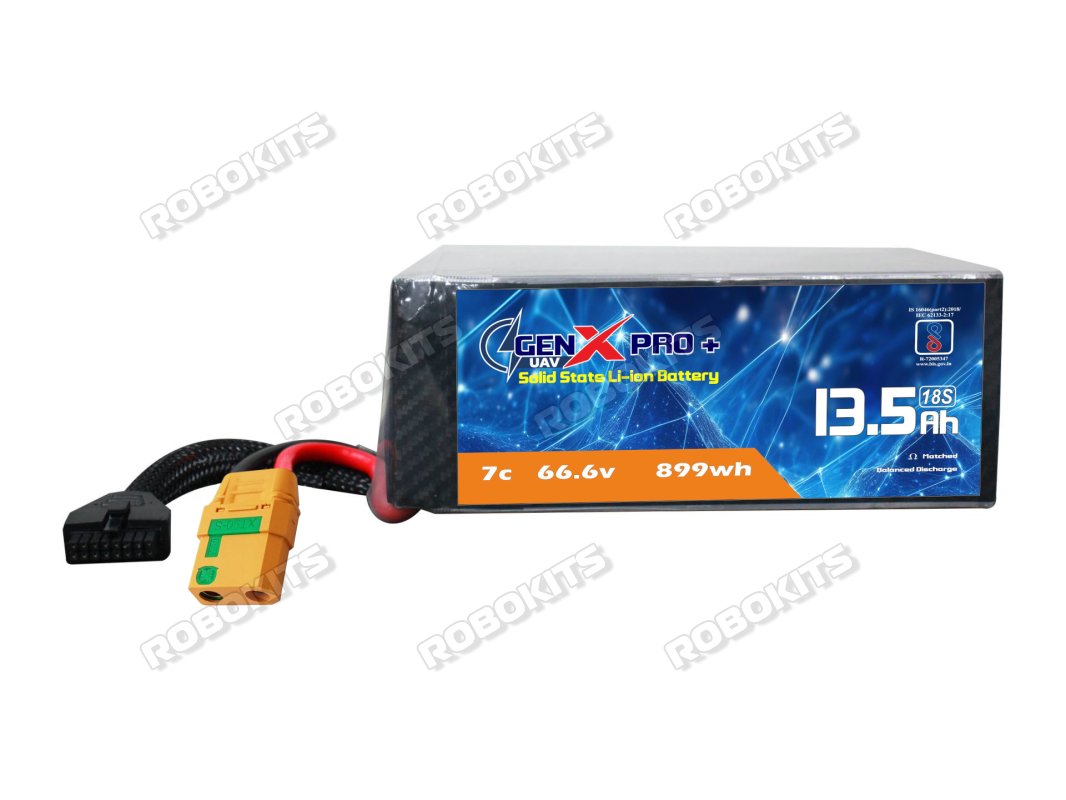

The GenX Pro+ Solid State 66.6V 18S1P 13500mah Lithium Ion Solid State Battery with XT90S Discharge Connector is both powerful and efficient, designed for demanding applications. It operates at a nominal voltage of 66.6V and consists of 18 cells in series and 1 cells in parallel, enhancing its voltage and capacity. With a nominal capacity of 13500mah, it provides ample energy storage to effectively power your devices. The XT90S discharge connector ensures a reliable and secure connection, making this battery pack an excellent choice for performance and reliability.
Each cell is made with high performance prime grade lithium ion raw material. Each battery pack is made with matched impedance cells to provide the maximum usable time after each charge. This battery is guaranteed for performance in professional drones, agriculture drones and other demanding multi-rotor and fixed wing aircrafts. This battery pack is suitable for long life and high recharge cycles up till approx. 800+ Charges.
*Please note: In case of any Customization, contact sales team before ordering
Features
- No Puffing while charge and discharge
- Improved Charge Cycles
- Light Weight and small size.
- Wide range for upper and lower voltage limits
- Excellent low temprature performance
- No leakage
- Very Less prone to explosion and fire compared to Li-PO
- Higher charge current 2C
- 35% Longer Flight-time
| Nominal voltage | 66.6V |
| Configuration | 18S1P (18cells in Series | 1 cells in Parallel) |
| Nominal Capacity | 13500mah |
| Continuous Discharge | 5C |
| Internal Resistance | 1.42mOhms (±)10% |
| Energy (Wh) | 899.1 |
| Discharge connector | XT90S |
| Discharge Cable (AWG) | 12AWG |
| Balance Connector | Molex 16P |
| Charging time | 90 Mins |
| Life Cycle of Battery Pack | 800+ |
| Application | e-vtol, Logistics, Surveying and Mapping, Surveillance |
| Burst Discharge | 7C |
| Dimension | 140*64*151 mm (±)3% |
| Weight (g) | 2892g (±)10g |
Package Includes:
- 1 x GenX Pro+ Solid State 66.6V 18S1P 13500mah 5C/7C Premium Lithium Ion Rechargeable Battery
*Please do not select air shipping for battery as the same is not permitted by airline regulations
