GenX Ultra Lithium Ion battery packs are the new best in high performance. They offer exceptional power and dependability for a wide array of applications. With a capacity of 25200mAh and a burst discharge rate of 20C these battery packs ensure top performance even under challenging conditions.
Additionally, GenX Ultra Lithium Ion battery packs are known for their impressive energy density and optimal weight-to-energy ratio. This makes them the most compact and efficient option in their category compared to other available choices.

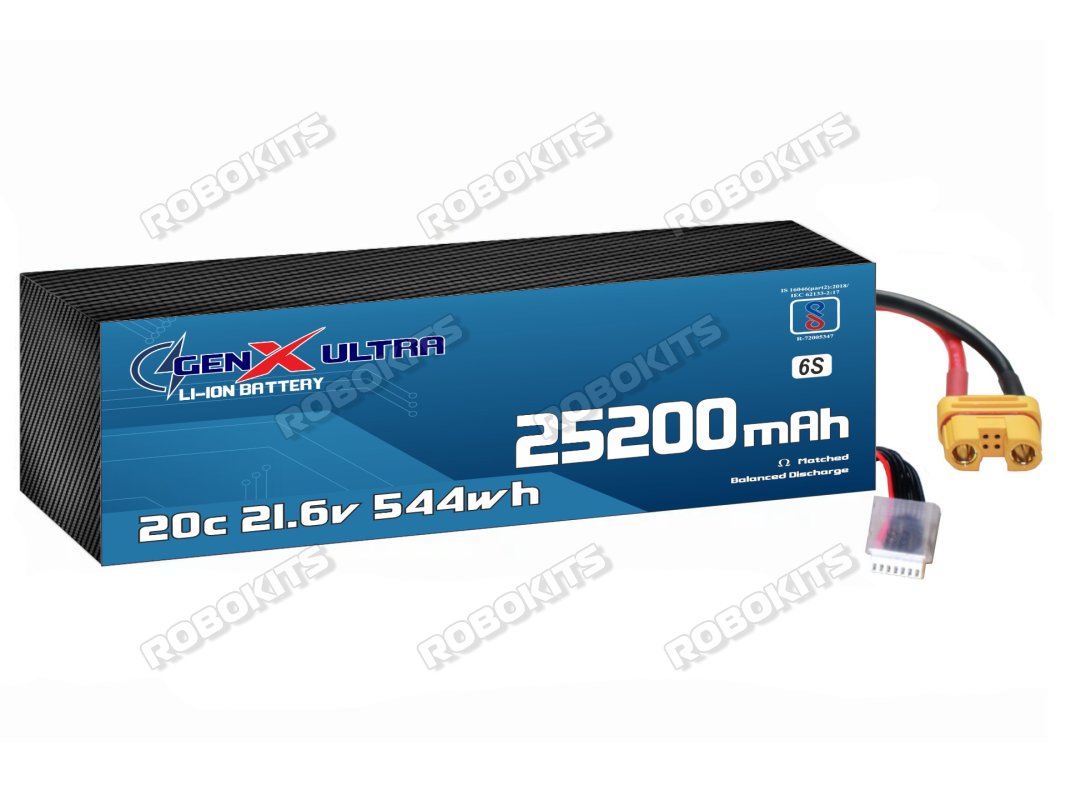

The GenX Ultra 21.6V 6S6P 25200mah Lithium Ion Battery with AS150U Discharge Connector is both powerful and efficient, designed for demanding applications. It operates at a nominal voltage of 21.6V and consists of 6 cells in series and 6 cells in parallel, enhancing its voltage and capacity. With a nominal capacity of 25200mah, it provides ample energy storage to effectively power your devices. The AS150U discharge connector ensures a reliable and secure connection, making this battery pack an excellent choice for performance and reliability.
Each cell is made with high performance prime grade lithium ion raw material. Each battery pack is made with matched impedance cells to provide the maximum usable time after each charge. This battery is guaranteed for performance in professional drones, agriculture drones and other demanding multi-rotor and fixed wing aircrafts. This battery pack is suitable for long life and high recharge cycles up till approx. 800 Charges.
Battery Pack Specifications:
| Nominal voltage | 21.6V |
| Configuration | 6S6P (6cells in Series | 6 cells in Parallel) |
| Nominal Capacity | 25200mah |
| Continuous Discharge | 20C |
| Internal Resistance | 0.6mOhms (±)10% |
Energy (Wh) | 544.32 | Discharge connector | AS150U | | Burst Discharge | 20C |
| Operating Temperature Range | Ambient Charge : -20 to 45℃ Ambient Discharge: -40 to 60℃ |
| Storage Temperature Range | Storage Temprature : 0 to 60℃ (65% Humidity) |
| Cycle Life | DOD 80% : 1C/1C 800+ cycles
DOD 80% : 1C/10C 500+ cycles
DOD 80% : 1C/20C 300+ cycles |
| Standard Charge | 4.2A(1C), CCCV, 4.20 V, 250mA cut-off |
| Rapid Charge | 8.4A(2C), CCCV, 4.20 V, 100mA cut-off |
| Standard Discharge Current | 0.5C |
| Dimension | 207*77*80 mm (±)3% *ZigZag Cell Structure |
| Weight (g) | 2704g (±)10g |
*Please do not select air shipping for battery as the same is not permitted by airline regulations
*Note: Images may include actual or 3D renders for representation. Final product design features will be available zigzag cell structure.
