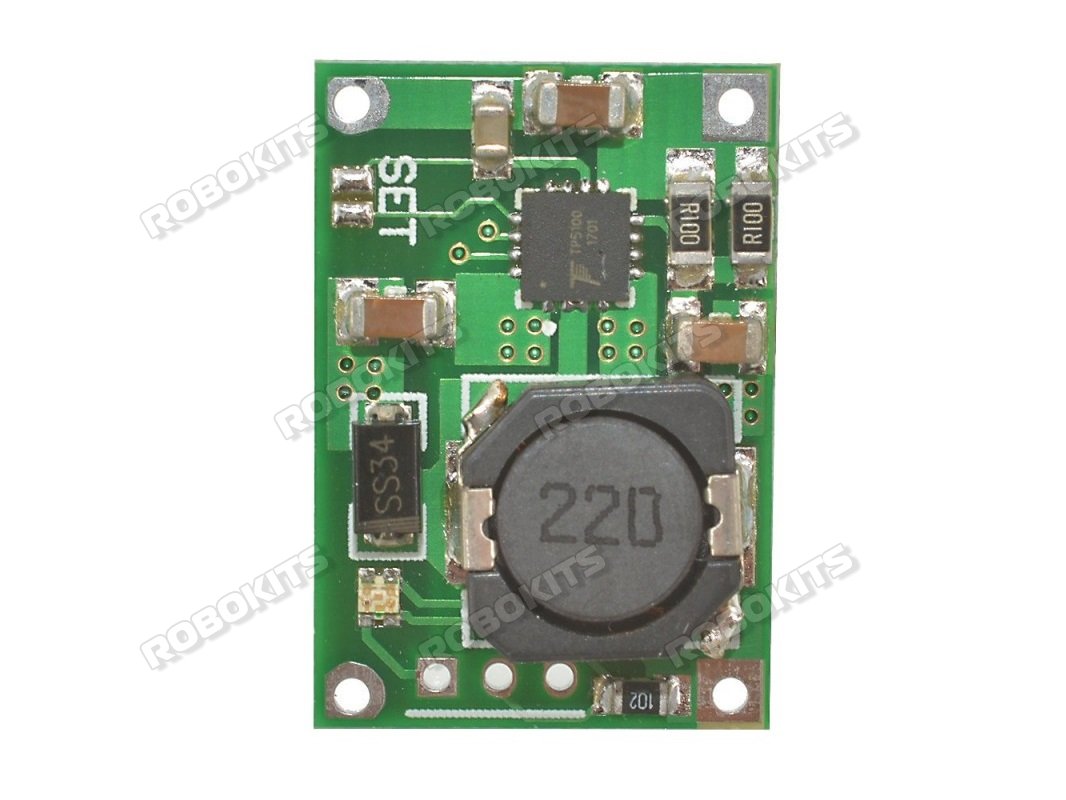

A double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip is used in the TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board. The TP5100 is ideal for portable equipment and large current charging management applications due to its ultra-compact QFN16 package and simple external circuit. Meanwhile, the TP5100 has built-in input overcurrent, undervoltage, over-temperature, short circuit, battery temperature monitoring, and reverse battery protection.
The TP5100 has a wide input voltage range of 5V-15V, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, and a maximum charge current of 2A. The TP5100 switching mode with a frequency of 400kHz allows for the use of a smaller outer Suo device while maintaining a lower amount of heat.
The TP51OO has a built-in power PMOSFET, no anti-intrusion circuit, and another external Schottky diode.
Features:
- Charge status: full and unloaded blue lights, charging red
- Double 8.4v / 4.2v lithium rechargeable single
- Programmable steady precharge current 10% -100%
- Wide operating voltage, maximum reach I8V
- Programmable charge current. 0. 1A-2A
- Red and green LED charge status indicator
- Input voltage: 5-15V DC power supply
- Chip temperature protection, overcurrent protection, under voltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
Specifications:
- Model: TP5100
- Input Supply voltage (V) :5 ~ 15
- Programmable charge current: 0.1 ~ 2 A
- Length (mm): 26
- Width (mm): 18
- Height (mm): 5
- Weight (gm): 3
- Shipment Weight: 0.005 kg
Application:
- Portable equipment, various chargers
- Smartphone, PDA, mobile cellular telephone
- MP4, MP5 players, tablets
- HM
- Power Tools
- Walkie-talkie
Package Includes:
- 1 x TP5100 Dual and Single 8.4V and 4.2V 18650 Lithium 2A BMS Module
