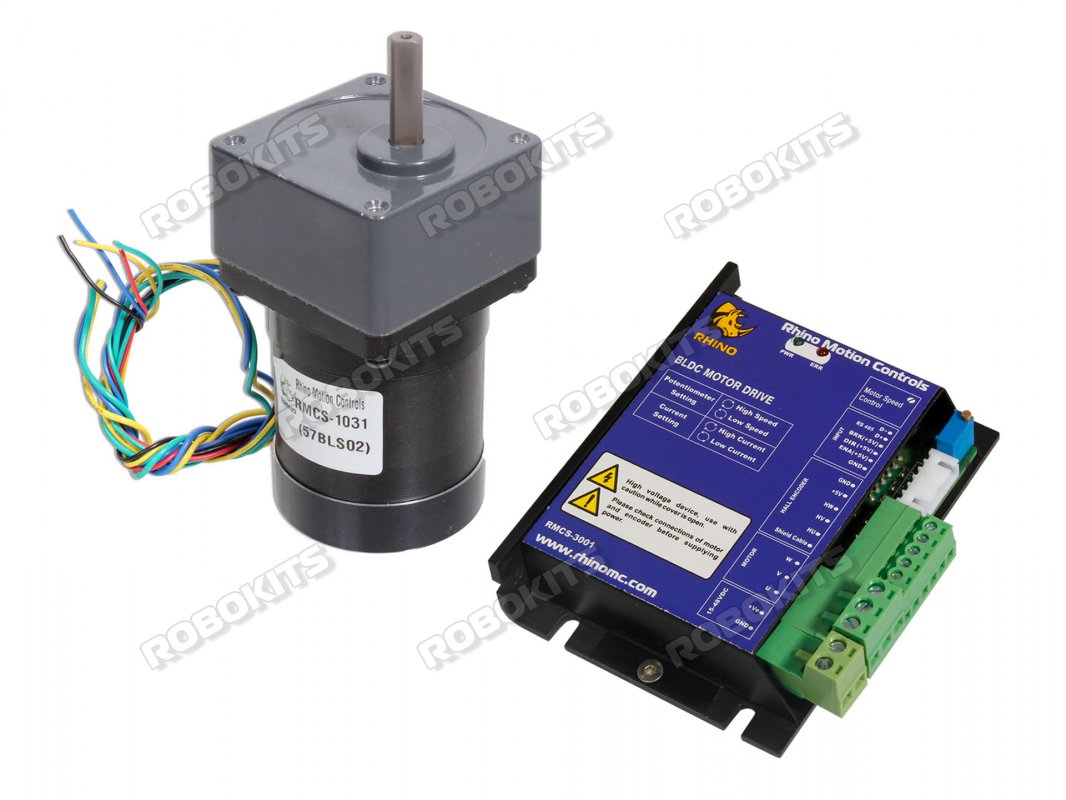

Brushless DC Motor NEMA24 19Kgcm with RMCS-3001 modbus drive

0 out of 5 stars Write a Review.

Please Choose:

Logic Converter




    Free Economy Shipping option available
  • Availability :
  • In stock
  • Warranty :
  • None
  • Model :
  • RMCS-3052
₹7,389 (Incl. GST)
₹6262 Excluding 18% GST
GST Input Tax Credit of ₹1127 Available. (Know More)


Add to Cart:



Got Better Price

  • Description
  • Downloads & Media
  • Reviews

This combo includes a Brushless DC geared motor with NEMA24 frame 19kgcm torque at 230 rpm and  Brushless Driver with Rated current capacity of 5A and peak current of 20A. Four Pole motor is rated for 24V and 92W applications while the driver can be driver driven using maximum 48V supply.

The driver comes with ENABLE, BRAKE and DIRECTION inputs that are optically isolated. These inputs work with 3.3V or 5V logic drive signals.



Motor Specifications:

  • No. of Poles: 4
  • Phase to Phase resistance: 0.9ohms
  • Nominal Voltage: 36V
  • No Load speed Base motor: 4800
  • No Load current Base motor: 0.5A
  • Rated Torque Base motor: 2.2Kg-cm
  • Output Power: 92W
  • Rated Speed with Gearbox: 230 rpm
  • Rated Torque with Gearbox: 19.2Kg-cm
  • Motor Length without Gearbox: 104mm
  • Shaft Length: 27mm
  • Insulation Class: B

General Specifications:

  • Input Supply Voltage: 15 to 48V
  • Rated current : 5A
  • Peak Current: 20A
  • Smooth and quiet operation at all speeds and extremely low motor heating
  • Fully configurable position and velocity loop
  • Delivers up to 5A of continuous current
  • 2.5V, 3.3V and 5V compatible BRAKE, DIRECTION and ENABLE inputs with 2-wire opto-isolated interface
  • Short-circuit protection for the motor outputs, over-voltage and under-voltage protection
  • LED indication for power and error states
  • Ambient Temperature : 0-70°C



Driver Technical Specifications

Specification

Min

Max

Units

Comments

Supply Voltage

15

48

Volts DC

Between +Ve and GND

Phase Current

0.5

5

Amps

As demanded by load

Auto Current Reduction

50%

70%

         —

Motor stand-still for more than 10ms

Power Dissipation

0

15

Watts

Short-Circuit Current

3

5

Amps

In case of motor terminal short

DIR Voltage

2.5

5

Volts DC

Ambient Temp.

0

70

Celsius

Humidity

0

95%



Non condensing


Driver Mechanical Specifications

Specification

Details

Dimensions (L * W * H)

100mm * 75mm *25mm

Weight

155gms

Heat Sink

Anodized Aluminum 3mm thickness

Mounting Screw Holes

3.6mm minimum diameter


Hall Effect Sensor Terminal

Terminal No.

Terminal Name

Wire Colour

Description

Terminal 1

Shield

-

Shield Cable

Terminal 2

HU

Yellow

Hall U

Terminal 3

HV

Green

Hall V

Terminal 4

HW

Blue

Hall W

Terminal 5

+5V

-

Power +Ve(+5V Output)

Terminal 6

GND

-

GND



Control Input Assignments

Terminal No.

Terminal Name

Description

Terminal 1

GND

COM

Terminal 2

ENA

Enable (Motor Free) +Ve input

Terminal 3

DIR

Direction (Motor Change Directions) +Ve input

Terminal 4

BRK

Brake(Motor Lock) +Ve input

Terminal 5

 D+

RS 485 Modbus

Terminal 6

D- RS 485 Modbus




Indication and Control

Resolution

Description

Pot-1

Potentiometer for speed  control

Pot-2

Current Setting
